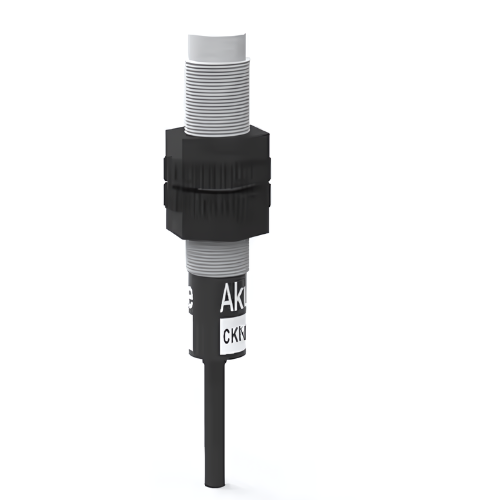

Pro Shield Ultra PBT M18 Sensor with High Frequency and Precision Accuracy – Amuse Tech Solutions
M18 sensor with PBT housing, IP 6 protection, -13°F to 158°F, 0.08 to -0.59 inch sensing range, and short circuit protection.
Description
Technical Specifications
| Mounting | Un shield / Non-Flush |
| Housing size | M18 |
| Housing material | PBT |
| Operating voltage | 10 V DC to 30 V DC (Ripple < 10 %) |
| Voltage drops | < 2 V |
| Load Current, Max | 180 mA |
| Current consumption | < 10 mA |
| Leakage current | < 0.01 mA |
| Switch frequency | 500 Hz |
| Repeat accuracy | < 1 % Sr |
| Hysteresis | < 15 % Sr |
| Sensing surface material | PBT |
| Circuit protection | Short circuit protects |
| Degree of protection | IP 6 |
| Operating temperature | -13 °F to 158 °F (-25 ℃ to +70 ℃) |
| Sensing distance | 0.08 in to -0.59 in (0.2 cm to –1.5 cm) modulated |
