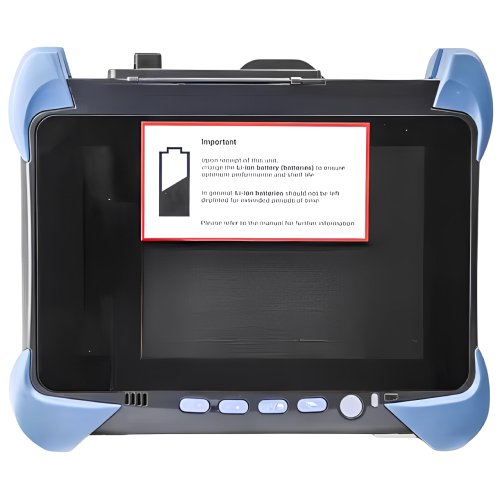

Pro Fiber Optic Test Equipment with High Dynamic Range – Amuse Tech Solutions
Ideal for professionals in fiber optic maintenance and installation, this device is built for precision and reliability in various operating conditions
Description
 Technical Specifications
| Wavelengths | 1310±20 nm/1550±20 nm |
| Dynamic Range | 42/41 dB |
| Connector | USB |
| Platform | OTDR EXFO FTB-1V2 |
| iOLM Option | Yes |
| Power Meter and VFL Option | Yes |
| Sampling Points | Up to 256,000 |
| Dual Core Processor | Yes |
| RAM | 4 GB |
| Operating System | Windows Embedded 8 Standard |
| Display | Multitouch, wide-screen, color TFT, 50.39 in x 31.50 in, 7.99 in (128 cm x 80 cm, 20.3 cm) |
| Interfaces | RJ45 LAN 10/100/1000 Mbit/s, 2 x USB 2.0, 1 x USB 3.0, Micro SD card slot, 0.1378 in (0.35 cm) headset/microphone port |
| Storage | 128 GB internal memory (flash) |
| Battery | Rechargeable Li-ion smart battery |
| Power Supply | AC/DC adapter, input: 100-240 V; output: 24 V, 3.75 A |
| Event Dead Zone | 1.64 feet (0.5 m) |
| Attenuation Dead Zone | 8.2 feet (2.5 m) |
| Distance Range | 0.0621 mi to 248.55 mi (0.1 km to 400 km) |
| Pulse Width | 3 ns to 20,000 ns |
| Linearity | ±0.03 dB/dB |
| Loss Threshold | 0.01 dB |
| Loss Resolution | 0.001 dB |
| Sampling Resolution | 0.1312 ft to 32.81 ft (0.04 m to 10 m) |
| Distance Uncertainty | ± (0.75 + 0.0025 % x distance + sampling resolution) |
| Measurement Time | User-defined (max: 60 minutes) |
| Real Time Refresh Rate | 4 Hz |
| Stable Source Output Power | >1.5 dBm |
| Reflectance | ±2 dB |
| Weight (with Battery) | 1.5 kg (3.3 lb.) |
| Size (with Single-Depth Module) | 8 ¼ in x 10 in x 2 5/8 in (21 cm x 25.4 cm x 6.6 cm) |
| Size (with Double-Depth Module) |  8 ¼ in x 10 in x 3 13/16 in (21 cm x 25.4 cm x 9.6 cm) |
| Relative Humidity | 0 % to 95 % non-condensing |
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Storage Temperature | –40 °C to 70 °C (–40 °F to 158 °F) |
