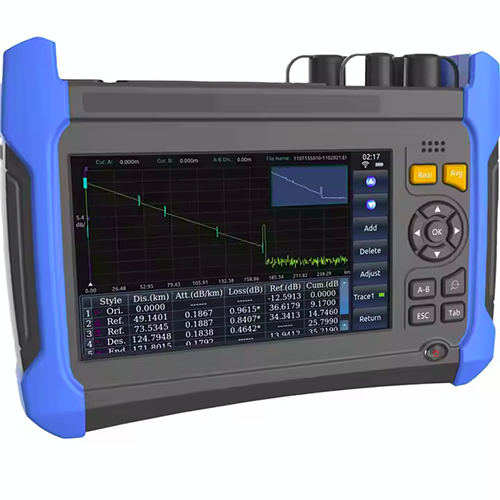

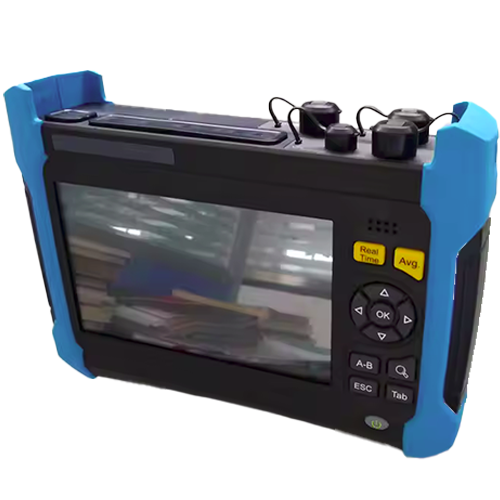

Precision Fiber OTDR with High Precision Testing – Amuse Tech Solutions
High-precision time domain reflectometer for fiber optic networks. Accurate fault location reliable performance. Ideal for network maintenance.
Description
Features
- Accurate Fault Location
- User-Friendly Interface
- Reliable Performance
- High-Precision Testing
Technical Specifications
| Model Number | OTDR |
| Fiber Type | G.652 |
| Standard Functions | OTDR/OPM/VFL/LS/Event Map/Fiber End Detection/Optical Loss Test |
| Optical Output Interface | FC/UPC, LC/UPC, SC/UPC, ST/UPC |
| Interface Language | Chinese, English, Russian, Korean, Customization |
| External Interface | USB, Micro-USB, 10M/100M Ethernet, Micro SD, Earphone |
| Wavelengths | 1310 nm ± 20 nm / 1550 nm ± 20 nm |
| Dynamic Range | 32/30 dB |
| Event Blind Zone | 3.3 ft (1 m) |
| Attenuation Blind Zone | 19.7 ft (6 m) |
| Test Range | 1640 ft / 3280 ft / 6560 ft / 13123 ft / 26247 ft / 52493 ft / 104986 ft / 209972 ft/ 419944 ft / 839888 ft (500 m/1 km/2 km/4 km/8 km/16 km/32 km/64 km/128 km/ 256km) |
| Pulse Width | 5 ns to 20000 ns |
| Ranging Accuracy | ± (2.5 ft + Sample interval + 0.005% x Test distance) |
| Loss Accuracy | ±0.05 dB/dB |
| Sampling Points | 16 k to 256 k |
| Sampling Resolution | 0.16 ft to 52.5 ft (0.05 m to 16 m) |
| Reflection Accuracy | ±3 dB |
| Data Storage | Internal: ≤3000 curves; External: 4GB |
| Refresh Rate | 3 Hz (Typ.) |
| OPM Wavelength Range | 800 nm to 1700 nm |
| OPM Test Scope | -50 dBm to +26 dBm |
| OPM Uncertainty | ±5 % |
| VFL Wavelength | 650 nm ± 20 nm |
| VFL Output Power | >10 mW |
| Battery Working Hours | > 10 hours |
| Relative Humidity | 0 % to 95 % non-condensing |
| Operating Temperature | 14 °F to 122 °F (-10 °C to 50 °C) |
| Storage Temperature | -40 °F to 158 °F (-40 °C to 70 °C) |
| Dimension | 9.9 in x 7.1 in x 2.2 in (25.2 cm x 18 cm x 5.5 cm) |
| Weight | 63.49 oz (1.8 kg) |
