Portable PoE Network Tester for CAT5 Cable Testing – Amuse Tech Solutions
The Amuse Tech Solutions NF-488 PoE checker tests PoE equipment, network cables, DC power, and switch loops with versatile detection and testing capabilities
Description
Overview

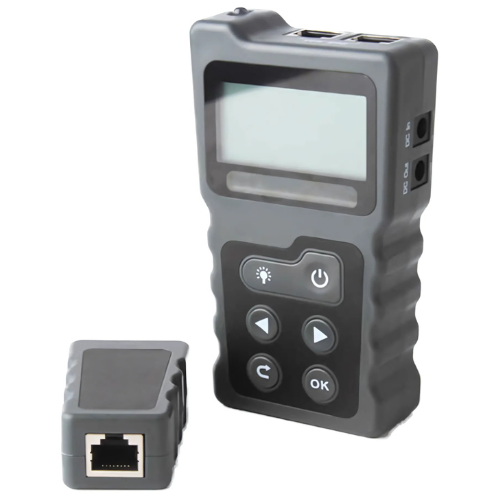

Amuse Tech Solutions The NF-488 PoE checker consists of two parts: an Emitter and a remote. It has functions such as standard and non-standard PoE equipment detection, PoE power online test, network cable continuity test, DC power test, switch loop-back test and other functions. Therefore, it is perfect for security monitoring, communication wires, integrated wiring and other weak current systems
Features
- Test information on standard PoE devices such as standards, supply voltage, power polarity and mode.
- Determine the power supply voltage, power polarity and mode of non-standard PoE equipment.
- Check for shorts, crossovers and open circuits in the network cable.
- Test the current, voltage and power consumed by the DC appliance.
- Loopback test function of the switch
Technical specifications
| Customized Support | OEM |
| Indicator | LCD 128×64 |
| Function | CAT5 Testing |
| Testing Range | 1968 ft (600 m)] |
| Current Range | 0-3A |
| Color | Black |
| Output Interface | Yes |
| Voltage Test Range | DC 0-60V |
| Ports | RJ45 |
| Cable Types | STP/UTP |
| Material | ABS |
| PoE Switch Test Range | DC 5-60V |
| Standard Identify | 802.3af/at(standard/non-standard) |
| Test Range Power | 0-18W |
| Power Test Range | 0-180W |
| Power Supply | 3×AAA Batteries |
| Size | 16.54in×4.33in×7.28 in (42cm×11cm×18.5 cm) |
