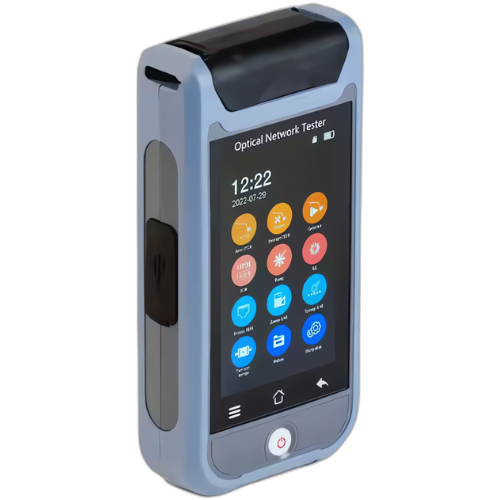

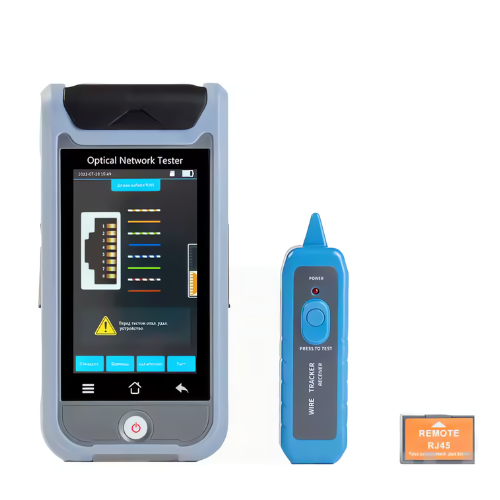

Portable OTDR with Multitasking File Management High Accuracy – Amuse Tech Solutions
Efficient optical time-domain reflectometer for fiber network testing. High precision, user-friendly interface, and advanced technology.
Description
Features
- Portable and lightweight
- Advanced file management
- High measurement accuracy
- Simultaneous multitasking
Technical Specifications
| Dynamic Range | 26 dB/24 dB |
| Event Dead Zone | 8.2 feet (2.5 meters) |
| Attenuation Dead Zone | 26.2 feet (8 meters) |
| Test Range | 0.3 mi to 62.1 mi (500 m to 1000 m) |
| Linearity | ≤ 0.05 dB/dB |
| Sample Points | 16,000 to 128,000 |
| Sample Resolution | 0.16 feet to 26.2 feet (0.05 meters to 8 meters) |
| Loss Resolution | 0.001 dB |
| Loss Threshold | 0.20 dB |
| Range Resolution | 0.003 feet (0.001 meters) |
| Refractive Index | 1.00000 to 2.00000 |
| Connector | FC/UPC (interchangeable SC, ST) or SC/APC |
| Multitasking Support | Yes |
| Data Storage | 8 GB, ≥ 20,000 curves |
| Battery Working Time | Continuous test > 12 hours |
| Operating Temperature | 14°F to 122°F ( -10°C to +50°C) |
| Dimensions | 6.8 in x 4.3 in x 1.8 in (17.3 cm x 10.9 cm x 4.5 cm) |
| Weight | ≤ 1.1 lbs (0.5 kg) |
