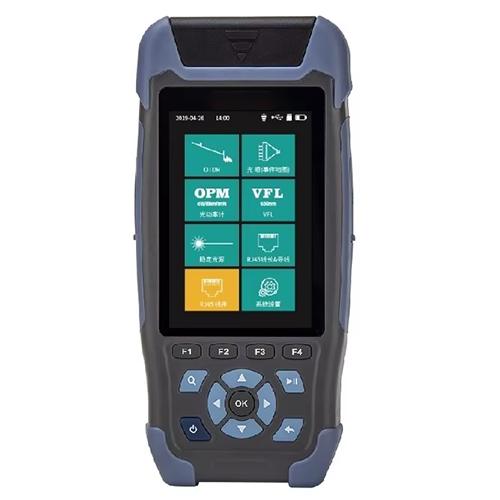

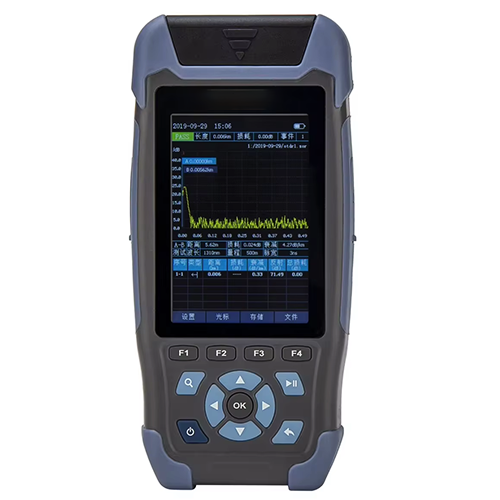

Portable Optical Testing Device Wide Dynamic Range – Amuse Tech Solutions
Multifunctional device for fiber optic testing, portable and precise, perfect for maintenance and diagnostics of optical networks.
Description
Features
- Wide dynamic range
- Multiple integrated functions
- Color LCD display
- Portable lightweight design
Technical Specifications
| Connector | FC/UPC (Interchangeable with SC, ST) |
| Display | 3.5-inch color LCD |
| Data Interface | Micro USB |
| External Storage | TF card |
| Battery Life | Standby: >20 hours; Measurement time: >12 hours |
| Relative Humidity | 0 to 95% non-condensing |
| Test Range | 0.31 to 37.28 miles (0.5 to 60 km) |
| Pulse Width | 3ns to 10µs |
| Loss Accuracy | ±0.05dB/dB |
| Test Range | -50dBm to +26dBm |
| Uncertainty | ±5% |
| LD Type | FP-LD |
| Wavelength | 1310nm/1550nm ±20nm |
| Output Power | ≥-5dBm |
| Modulation Frequency | 270/330/1k/2kHz |
| Stability | CW, ±0.5dB/15min (Tested after 15 minutes of warm-up) |
| Wavelength (VFL) | 650nm ±20nm |
| Output Power (VFL) | ≥10mW |
| Mode (VFL) | CW/1Hz/2Hz |
| Test Range (VFL) | 984.25 feet (300m) |
| Operating Temperature | 14°F to 122°F (-10°C to +50°C) |
| Dimensions | 6.81 in x 3.23 in x 1.46 in (17.3 cm x 8.2 cm x 3.7 cm) |
| Weight | ≤0.77 pounds (≤350g) |
