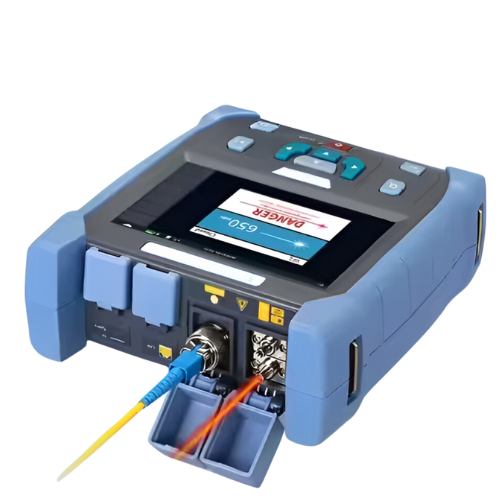

Portable Mini OTDR with HD Touchscreen for Fiber Testing – Amuse Tech Solutions

Compact and portable OTDR with a high-definition touchscreen, integrating multifunctional tools for efficient fiber optic testing and maintenance.

SKU: ATSTDRT-222 Category:

Description

Features

  • Portable design
  • High-definition touchscreen
  • Multifunctional testing
  • Precise fiber analysis



Technical Specifications

Dynamic Range 24 dB / 22 dB
Testing Range 0.5 mi to 62.1 mi (0.8 km to 100 km)
Wavelength 1310 nm / 1550 nm / 850 nm / 1300 nm / 1610 nm
Pulse Width 5 ns to 20 µs
Measurement Mode Real-Time, Average, Automatic
Attenuation Dead Zone 19.7 ft (6 m)
Event Dead Zone 4.9 ft (1.5 m)
Sampling Points ≥16,000
Visual Fault Locator (VFL) Universal Connector, 10 mW, 0.098 in (2.5 cm)
LCD Screen 5-inch High-Definition Color Touchscreen
Battery Life Long-Lasting, Rechargeable Lithium-Ion Battery
Interfaces USB and SD Card Slots
Data Storage Large Capacity Internal Memory and External Storage Supported
Operating Temperature 14°F to 122°F (-10°C to +50°C)
Storage Temperature -4°F to 140°F (-20°C to +60°C)
Dimensions 6.693 in × 6.063 in × 2.283 in (17 cm × 15.4 cm × 5.8 cm)
Weight 42.33 oz (1.2 kg)
