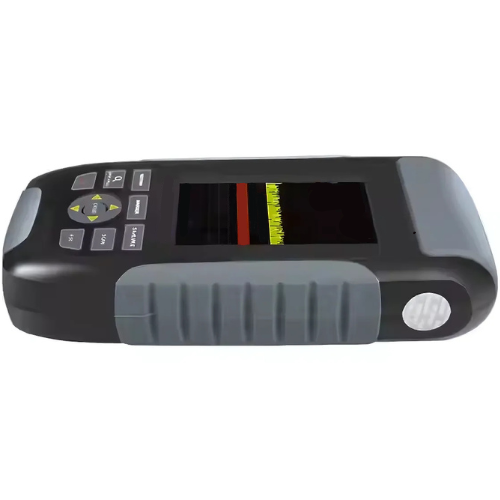

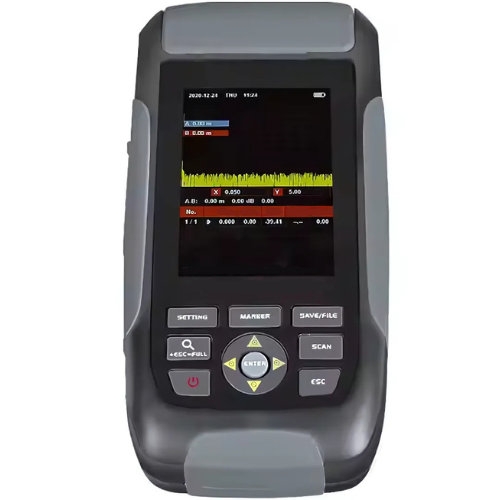

Portable Fiber OTDR for Accurate and Quick Testing – Amuse Tech Solutions
Portable and reliable OTDR for precise fiber testing. Compact design ensures efficient network diagnostics, ideal for field technicians.
Description
Features
- Portable design
- Accurate results
- Simple operation
- Quick testing
Â
Technical Specifications
| Use | FTTH |
| Wavelengths | 1310/1550 nm |
| Fiber Type | SM |
| OTDR Connector | FC/PC or customized |
| Communication Interface | Micro USB x 1 |
| Calibration Wavelength | 850/1300/1310/1490/1550/1625nm |
| Response Wavelength | 700 nm to 1700 nm |
| Dynamic Range (KP-500-A/B) | 20/22 dB |
| Data Storage | 500 test records |
| Battery | 3.7V, 2400mAh lithium battery |
| Battery Endurance | Standby > 8h, Test > 4h |
| Distance Setting | Max 50 miles (max 80 km) |
| Event Dead Zone | 6.56 ft (200 cm) |
| Attenuation Dead Zone | 26.2 ft (800 cm) |
| Pulse Width | 5 ns to 10 µs |
| Measuring Time | 5 s to 180 s |
| Sampling Point | 8000 |
| Linearity | ±0.03 dB/dB |
| Index of Refraction | 1.0000 to 2.0000 |
| Testing Range (OPM) | -50 dBm to +26 dBm |
| VFL Power | 1 mW |
| VFL Wavelength | 650 nm±20 nm |
| Operating Temperature | 32 °F to 122 °F (0 °C to 50 °C) |
| Dimension | 6.6 in x 3.7 in x 1.5 in (16.8 cm x 9.5 cm x 3.8 cm) |
| Weight | < 12.34 oz (< 350 g) |
