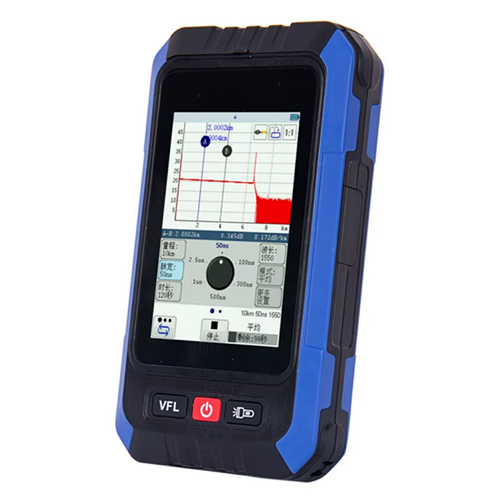

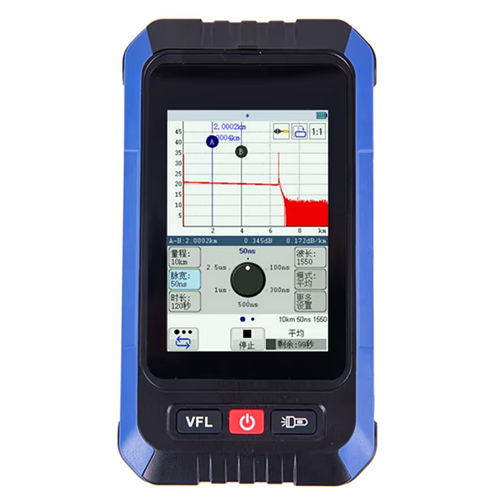

Portable Compact Optical OTDR for Precise Testing and Fault Detection – Amuse Tech Solutions
Portable multifunction OTDR for fiber optic testing with power meter, fault locator, and stable light source, perfect for FTTH network maintenance.
Description
Features
- Portable and multifunctional
- Precise fault detection
- Long battery life
- Compact, user-friendly design
Technical Specifications
| Battery Type | Lithium |
| Continuous Working Hours | >10 hours |
| Dynamic Range (dB) | 20 to 24 |
| Testing Active Fibers | Supported |
| Pulse Width | 5 ns to 20 ms |
| Event Dead Zone | 6.56 ft (2 m) |
| Attenuation Dead Zone | 26.25 ft (8 m) |
| Distance Range | 0.31 to 49.71 miles (0.5 to 80 km) |
| Loss Measurement Accuracy | ±0.05 dB/dB |
| Memory Capacity | 500 records |
| Optical Fiber Type | SMF (Single Mode Fiber) |
| LCD Size | 3.5 inches |
| Light Source Wavelength | 650 nm ±20 |
| Output Power | > 10 dBm |
| Detection Range | -70 to +26 dBm |
| Linearity | ±5% |
| Operating Temperature | 14°F to 122°F (-10°C to 50°C) |
| Dimension | 5.71 in x 3.07 in x 1.18 in (14.5 cm x 7.8 cm x 3 cm) |
| Weight | 0.88 lbs (0.4 kg) |
