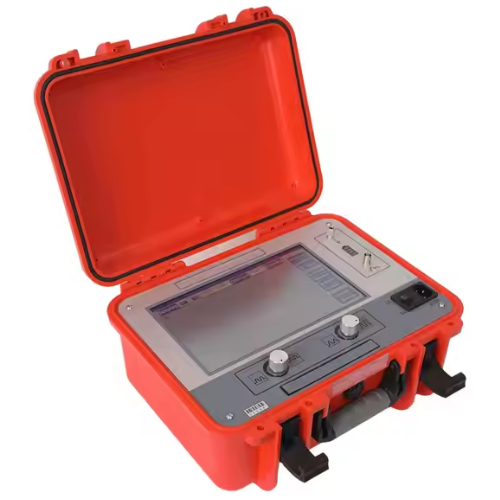

Pipe Fault Locator with Advanced Fault Location Technology – Amuse Tech Solutions
Advanced cable continuity tester offering precise fault detection, multiple testing methods, and robust performance for diverse industrial needs.
Description
Features
- Advanced fault location technology
- Multiple testing methods supported
- High measurement accuracy levels
- Robust and durable performance
- Wide detection range capability
Technical Specifications
| Control System | Industrial computer control, touch operation, strong anti-interference |
| Functions | Fault distance measurement, pinpoint location, propagation speed, cable path, and buried depth detection |
| Test Methods | Low-voltage pulse, flashover, audio, acousto-magnetic synchronization, valley, peak, and electromagnetic induction |
| Test Range | Distance: 37.28 mi (60km), detection depth: 6.56 ft to 16.4 ft (2 m to 5m) |
| Measurement Accuracy | Coarse: ± 32.8 ft (±10 m) or 1% relative; fine: ± 0.33 ft (±0.1 m) for fixed point, path, and depth |
| Sampling Frequency | 100 MHz |
| Minimum Resolution | 1.64 ft (0.5 m, 100 m/µs) |
| Sampling Method | Automatic continuous sampling, no missed discharge waveforms |
| Low Voltage Pulse | Width: adaptive; amplitude: 400 Vpp |
| Output Power | Path power: 100 W |
| Shock High Voltage | 0 kV to 35 kV |
| Short Circuit Current | 0 mA to 320 mA |
| Burn Through Power | 0 J to 1250 J |
| Test Blind Zone | Less than 65.6 ft (<20 m) |
| Ranging Range | Less than 18.64 mi (< 30 km) |
| Working Conditions | Temperature: -4 °F to 140 °F (-20 °C to 60 °C); relative humidity: Less than 90% |
