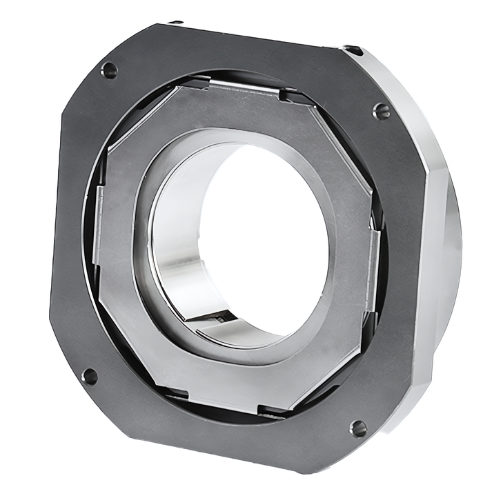

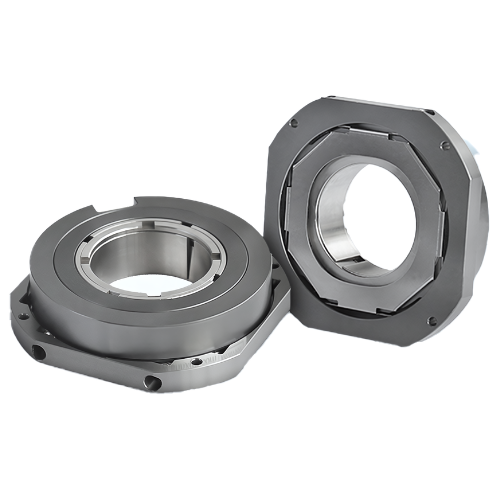

Photon Precise Compact High-Resolution Absolute Servo Optical Encoder- Amuse Tech Solutions.
Photon optical encoder delivers accuracy and reliability. Ideal for space constrained applications, precise multi turn position feedback for servo control, compact design.
Description
Features
- Compact and ultra-thin design
- It has a concentric locking shaft, patented structure simple and reliable
- X/Y axes Flange plate protects the cable from damage
- It has high quality electric standard
Technical Specifications
| Reflective Principle | Non-contact photoelectric |
| Accuracy | ± 80 inches |
| Response Speed | Normal action: 6000 min 1 |
| RMS Position Signal Noise | ± 2 at 18 bits/r |
| Communication Clock Frequency | ≤10 MHz (BISS) or ≤ 5 MHz (SSI) |
| Absolute Position Sampling Period | ≤ 75 ns |
| Allowable Speed | ≤ 32200 r/min (restricted by mechanical speed limit) |
| Starting Torque | Less than 60 × 10 to 3 Nm. |
| Inertial Moment | Less than 80 × 10 to 6 kg.m2 |
| Shaft Load | Radial 30 N; Axial 20 N |
| Slew Speed | ≤ 5000 rpm |
| Shell Material | Aluminum alloy |
| Environmental Humidity | Operating and storage: 35 % RH to 85 % RH (Noncondensing) |
| Thickness | 0.87 in (2.2 cm) |
| Hollow Shaft Diameter | 1.18 in; 1.26 in ;1.50 in; 1.57 in (3 cm; 3.2 cm; 3.8 cm; 4 cm) |
| Cable Length | 7.87 in to 393.70 in (20 cm to 1000 cm) |
| Environmental Temperature | Operating: -4 °F to 203 °F (-20 ℃ to +95 ℃); Storage: -13 °F to 203 °F (-25 ℃ to +95 ℃) |
