Outdoor Industrial Noise Sensor with RS485 Amuse Tech Solutions
Wireless sensor with 4-20mA/0-5VDC input, 433 MHz RF transmission, 1200m wireless range, low power consumption, and long battery life (1-2 years). Programmable transmission interval and unique sensor ID.
Description
Overview

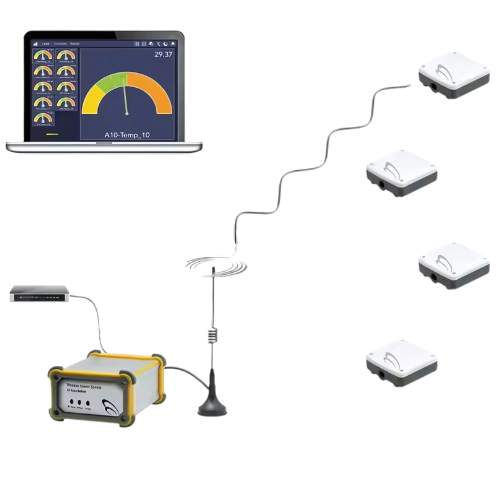

Amuse Tech Solutions’s Outdoor Industrial Noise Sensor with RS485 is a reliable solution for remote noise monitoring in industrial and environmental applications. Equipped with the G7 wireless analog sensor and Base Station, it enables real-time measurement transmission from any industrial analog sensor with a 4-20mA or 0-5VDC signal. The Base Station collects data from multiple wireless sensors and uploads it via Modbus TCP protocol. Users can access data through the G7-Centre App over the Internet or LAN, while the G7 Client App for Windows, iOS, and Android provides real-time alerts and analysis, ensuring proactive noise level monitoring and management.
Technical Specifications
| Analog Sensor | 4 to 20mA signal input |
| 0 to 5VDC signal input | |
| Transmission Interval | User Programmable 5s to 4 hours |
| Sensor ID | Unique 8 digits |
| RF Wireless | 433 MHz, 4.8Kbit/s |
| RF Power | 10dBm |
| Wireless Distance | (1200 meter) (unblock) |
| Operation Rating | 80mA (data transmission) |
| Standby Rating | ~3.0uA (sleep mode) |
| Operating Voltage | 7 to 10V DC |
| Battery Life | Average 1 to 2 year |
| Dimension | 4.52 x 3.54 x 2.16 in (115 x 90 x 55 mm) |
