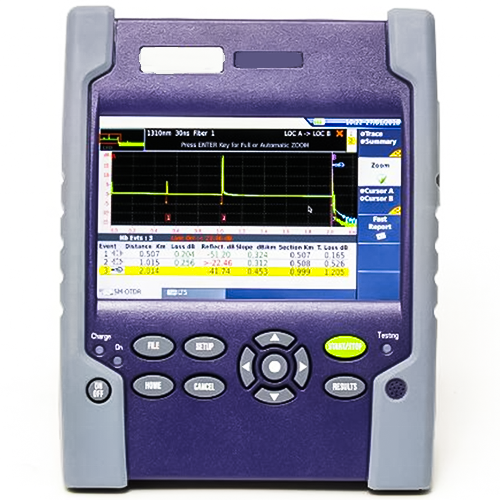

OTDR Tester with Multi Wavelength Testing Support – Amuse Tech Solutions
Compact, user-friendly OTDR with one-touch operation, automatic analysis, and wireless connectivity for fast, efficient network testing.
Description
Features
- Multi-wavelength testing support
- Compact, hands-free design
- Integrated CW light source
- PON optimized for testing
Technical Specifications
| Fiber Alignment | Core/cladding alignment / Manual alignment |
| Dynamic Range | 41/40dB OTDR |
| Tri Wavelength | 1310/1550/1625 |
| Dynamic Range 4 | 45/45/44 dB |
| Dynamic Range 2 | 45/43dB |
| Dynamic Range 3 | 41/40/40 dB |
| Dynamic Range 5 | 50/50/50 dB |
| Max Capacity | 3000mAh |
| Power Input | 50W |
| Splicing Time | 5S(AI-9) |
| Heating Time | Automatic heating (preheating) |
| Focus Mode | Six motors Auto focus |
| Applicable Fibers | SM (G.652&G.657), MM (G.651) DS (G.657), NZDS (G.655) |
| Splice Loss | 0.025 dB (SM),0.01 dB (MM), 0.04 dB (DS/NZDS) |
| Power Supply | Input AC100 to 240 V 50 / 60 HZ, output DC13.5 V / 4A, the current |
| Control Technology | Real-time control and calibration of fusion ARC |
| Return Loss | Better than 60 DB |
| Fiber Diameter | Cladding Diameter (80 μm to 150 μm), Coating Diameter (100 μm to 1000 μm) |
| Fiber Cleave Length | Coating less than 250 μm 31.49 in to 59.055 in (0.8 cm to 1.6 cm), Coating less than 250 μm to 1000 μm 0.62 (1.6 cm) |
| Shrinkable Tube | 2.36 in, 1.57 in (6 cm, 4 cm) |
| Weight | 5.3 lb. (2.4 kg) |
| Size | 5.11 in x 4.80 in x 5.82 in (13 cm x 12.2 cm x 14.8 cm) |
