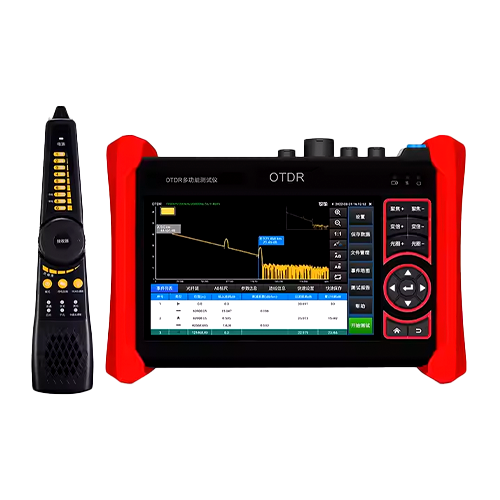

OTDR Tester with High Resolution Display with Ultra HD Support – Amuse Tech Solutions
Advanced OTDR and IP CCTV tester with touch screen, dual-wavelength support, high-resolution display, and versatile connectivity for system analysis.
Description
Features
- High-Resolution Display
- Ultra HD Camera Support
- Integrated Power Meter
- Versatile Connectivity Options
Technical Specifications
| Color | Red and black |
| Keyword | OTDR Tester |
| Ethernet Port | Single Gigabit |
| Red Light Source | Support |
| Touch Screen | 5.4 In (13.7 cm) |
| Resolution | High-resolution, 1920 to 1152 |
| Dynamic Range | 26 dB to 20 dB |
| Optical Power Meter | -70 dBm to +10 dBm, -50 dBm to +26 dBm |
| HDMI and VGA Ports | Supported |
| Ultra HD Camera Support | Supported |
| Display Type | High-resolution touch screen |
| Optical Testing Modes | Multi-mode and single-mode compatibility |
| Power Options | Rechargeable battery with long-lasting performance |
| Cable Testing | Network cable TDR test distance up to 6000 ft (1828.8 m) |
| Operating Temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Dimensions | Approximately 8.6 in x 5.9 in x 1.8 in (21.8 cm x 15 cm x 4.6 cm) |
| Weight | 4.4 lbs (2 kg) |
