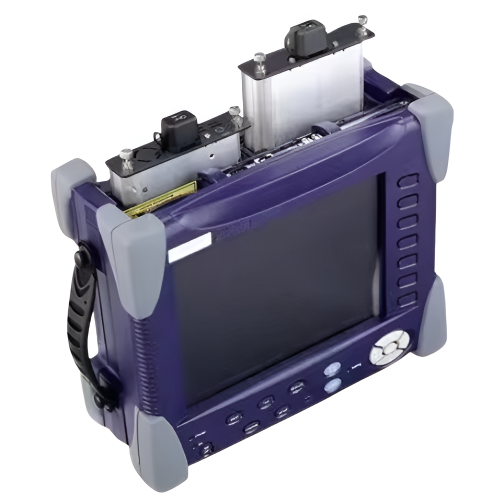

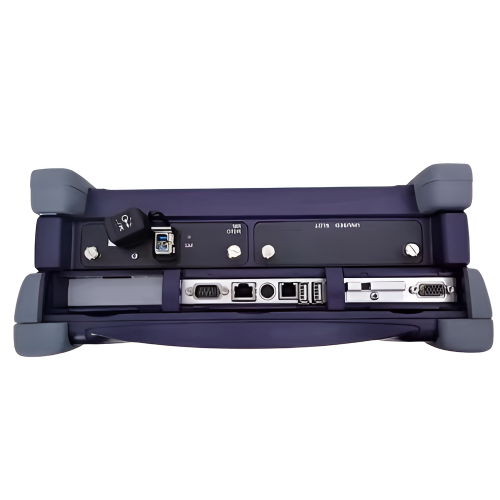

OTDR Tester with Compact Integrated Platform – Amuse Tech Solutions
Integrated test platform for fiber networks, offering modular design, versatile applications, and a user-friendly interface for efficient testing.
Description
Features
- Compact Integrated Platform
- Multi-Layer Network Solution
- Built-In Various Testing Tools
- Extensive Application Modules
Technical Specifications
| Fiber Alignment | Core/cladding alignment / Manual alignment |
| Heating Time | Automatic heating (Preheating) |
| Focus Mode | Six motors Auto focus |
| Applicable Fibers | SM (G.652&G.657), MM (G.651) DS (G.657), NZDS (G.655) |
| Splice Loss | 0.025 dB (SM),0.01 dB (MM), 0.04 dB (DS/NZDS) |
| Control Technology | Real-time control and calibration of fusion ARC |
| Return Loss | Better than 60 DB |
| Fiber Diameter | Cladding Diameter (80 to 150 μm), Coating Diameter (100 to 1000 μm) |
| Fiber Cleave Length | Coating less than 250 μm9.31 in to 6.29 in (0.8 cm to 1.6 cm), Coating less than 250 to 1000 μm 6.29 in (16 cm) |
| Power Supply | Input AC100-240V 50 / 60HZ, output DC13.5V / 4A, the current |
| Splicing Time | 5S(AI-9) |
| Shrinkable Tube | 2.36 in (6 cm),1.57 in (4 cm) |
| Size | 5.11 in x 4.80 in x 5.82 in (13 cm x 12.2 cm x 14.8 cm) |
