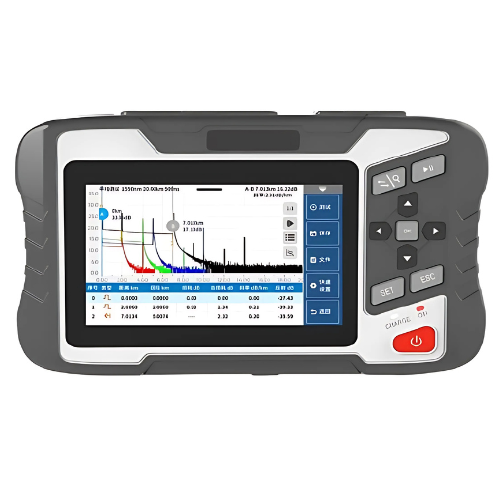

OTDR Optical Fiber Tester with Dual Wavelength Curve Contrast – Amuse Tech Solutions
Portable optical fiber tester for FTTH applications, detects cable breakpoints, supports LAN/newest networks, with a long-time warranty life.
Description
Features
- Touchscreen control, high resolution
- Dual wavelength, curve contrast
- Bluetooth control, data sharing
- RJ45 cable tracking supported
Technical Specifications
| File Format | SOR Standard File Format |
| Loss Analysis | 4-point method/5-point method |
| Laser Safety Level | Not specified |
| Connector | FC/UPC (Interchangeable SC, ST) |
| Refresh Rate | Not specified |
| Event Blind Zone | 4.92 ft (1.5 m) |
| ATT Blind Zone | 26.24 ft (8 m) |
| Test Range | 0.06 mi 0.18 mi, 0.31 mi, 0.77 mi, 1.55 mi, 3.10 mi, 6.21 mi, 12.42 mi, 24.85 mi, 49.71 mi, 77.67 mi, 161 mi (0.1 km/0.3 km/0.5 km/1.25 km/2.5 km/5 km/10 km/20 km/40 km/80 km/125 km/260 km) |
| Pulse Width | 3 ns/5 ns/10 ns/20 ns/30 ns/50 ns/80 ns/100 ns/200 ns/300 ns/500 ns/800 ns/1 µs/2 µs+ |
| Ranging Accuracy | 3.28 ft (1 m) + Sample interval + 0.005% × Test distance) |
| Linearity | <0.05 dB/dB |
| Max Sample Points | 160 k |
| Sample Resolution | 0.098 ft to 52.49 ft (0.03 m to 16 m) |
| Loss Resolution | 0.001 dB |
| Loss Threshold | 0.20 dB |
| Range Resolution | 0.003 ft (0.001 m) |
| Refractive Index | 1.00000 – 2.00000 |
| OTDR Models | NK4300-S1, NK4300-D1, NK4300-02, NK4300-F1 (live test), NK4300-F2, NK4300-T |
| Wavelength | 1310/1550 nm |
| Dynamic Range (1550 nm) | 24 dB |
