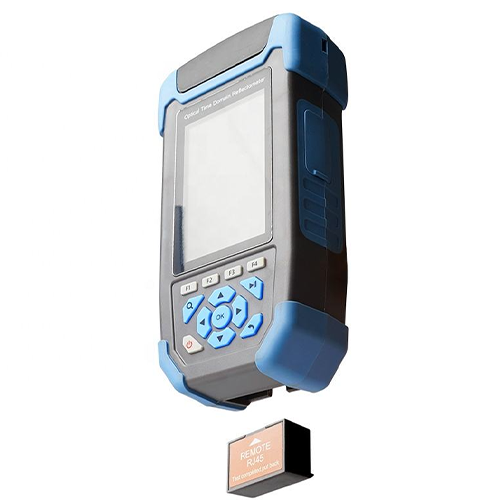

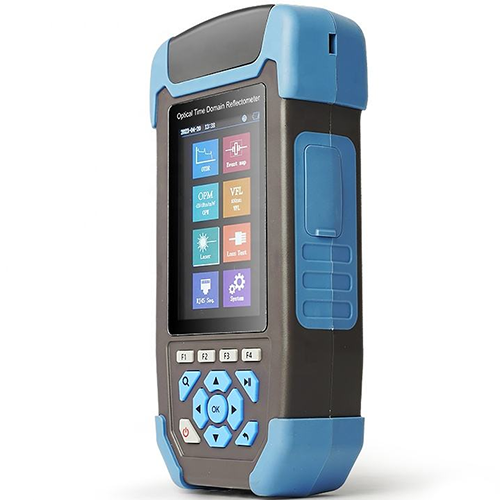

OTDR Machine Tester with Class II Laser Safety – Amuse Tech Solutions
Advanced FTTX testing with TCP, GPRS, Wi-Fi, Class II laser safety, wide test range, and high-resolution sampling for precise results.
Description
Features
- TCP, GPRS, Wi-Fi connectivity
- Class II laser safety
- Test range: 32.81 feet to 37.28 miles
- Sampling resolution: 0.164 feet to 26.25 feet
Technical Specifications
| Use | FTTX |
| Network | TCP, GPRS, wifi |
| File Format | SOR Standard File Format |
| Connector | FC/UP (Interchangeable SC、ST） |
| Fiber Type | G.652 SM Fiber |
| Data Storage | Internal: >= 600, External: TF Card |
| Laser Safety Level | Class Ⅱ level |
| Dynamic Range | 24 dB / 22 dB |
| Event Blind Zone | 9.84 feet (3 m) |
| Att Blind Zone | 26.25 feet (8m) |
| Test Range | 32.81 feet (10 m) to 37.28 miles (60 km) |
| Pulse Width | 3 ns to 10 us |
| Ranging Accuracy | 3.28 feet (1 m) + Sampling Interval + 0.005 ％ × Test Distance |
| Loss Accuracy | ± 0.2 dB / dB |
| Sampling Points | 16 k to 128 k |
| Sampling Resolution | 0.164 feet (0.05 m) to 26.25 feet (8m) |
| Reflection Accuracy | ± 3 dB |
| Pulse Width | 3 ns to 10 us |
