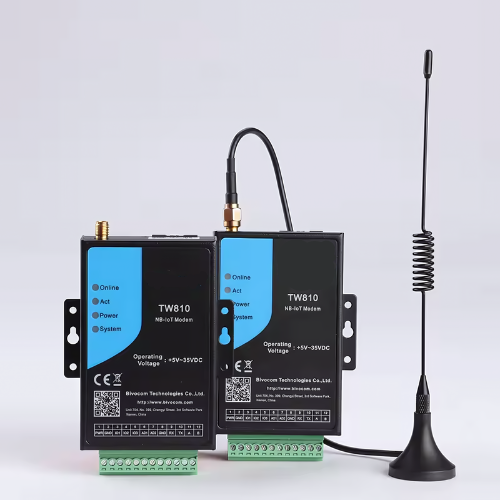

One Sim Card Slot NB-IoT Gateway SMS Backup LTE 4G 3G Ethernet – Amuse Tech Solutions
NB-IoT gateway with a single SIM card slot, SMS backup, and support for LTE, 4G, 3G, and Ethernet connectivity for versatile use.
Description
Overview
Amuse Tech Solutions industrial wireless IP Modem (Also called DTU, Data Transfer Unit), designed to fully meet the needs of industrial standards and industrial users. It adopts high-powered industrial 32-bits CPU, multi-layer software detection and hardware protection mechanism to ensure reliability and stability of the device. It supports worldwide carrier 4G/3G cellular network FDD-LTE, TD-LTE, and WCDMA, EVDO, TD-SCDMA, EDGE, CDMA 1X and GPRS.
Features
- SMS backup, data will be transferred by SMS when TCP/UDP disconnects
- Rich online and offline trigger modes: SMB, Ring, Data (Sent through serial port)
- Hardware and software auto inspection technology, enable operation fault auto repairing
Â
Technical Specifications
| Interface | 1x RS232, 1 x RS485, 5x I/O, 1 x SIM/UIM |
| Power Range | DC: 5 V to 35 V |
| Standard Power | DC: 12 V/1.5 A |
| Housing | Metal, IP30 |
| Dimensions | 3.58 in x2.30 in x0.87 in (91×58.5×22 mm) |
| Weight | Â 0.45 lb (208 g) |
| Operating Temperature | -31 ºF to +167 ºF (-35 ºC to +75 ºC ) |
