Network Performance Traffic Generation and Monitoring – Amuse Tech Solutions

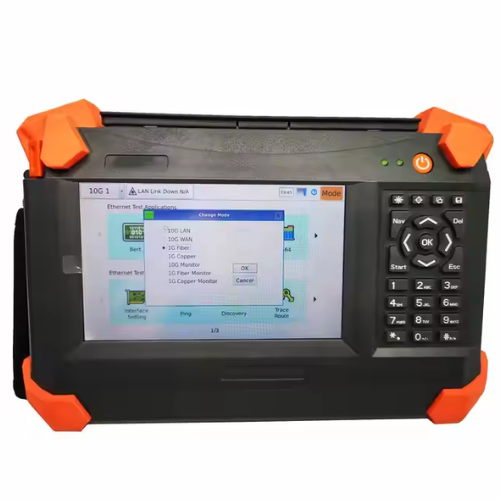

Ethernet Tester, a versatile tool for high-speed network testing. Ideal for professionals, it supports multiple Ethernet standards.
Description
Technical Specifications
| Optical Interface | Two GigE Ports |
| Electrical Interfaces | 10/100BaseT Half/Full Duplex, 1000BaseT Full Duplex |
| USB Interface | USB 2.0 port |
| LAN Interface | RJ-45 LAN |
| Battery | Rechargeable Lithium battery, 4 hours continuous operation |
| Power Supply | AC/DC Adapter; Input: 100 to 240V AC, 50/60Hz, 2A (Max.); Output: 24V DC, 90W |
| Y.1564 Test Capability | Service configuration and service performance tests as per ITU-T Y.1564 |
| RFC2544 Test | Throughput, back-to-back, frame loss, and latency measurement as per RFC2544 |
| BERT Bit Error Test | Up to layer 4 supported with or without VLAN Q-in-Q |
| Through Mode | Sectionalize traffic between service provider’s network and customer premises |
| Service Disruption Time (SDT) | Disruption time statistics: shortest, longest, last, average, total, pass/fail |
| Multi-stream Generation | Transmit and monitor up to 16 streams of Ethernet and IP traffic |
| Traffic Generation and Monitoring | Generate and monitor Ethernet/IP traffic; traffic shaping on throughput, loss, jitter, etc. |
| VLAN Stacking | Generate streams with up to two layers of VLAN (IEEE802.1ad Q-in-Q) |
| IPv6 Test | BERT, RFC2544, Traffic generation and monitoring, Ping, Trace route |
| Display | 7 in color TFT touch screen (Resolution: 960×480) |
| Data Storage | 8GB |
| Battery Life | 4 hours continuous operation |
| Power Supply Input | 100 V AC to 240 V AC, 50/60Hz, 2A (Max.) |
| Power Supply Output | 24V DC, 90W |
| Operating Temperature | Not specified |
| Storage Temperature | Not specified |
| Dimension | 11.1 in × 7.32 in × 2.95 in (28.2 cm × 18.6 cm × 7.5 cm) |
| Weight | 6.39 lb.(2.9kg) |
