Network Optic Cable Tester with Detects up to 8 Faults – Amuse Tech Solutions

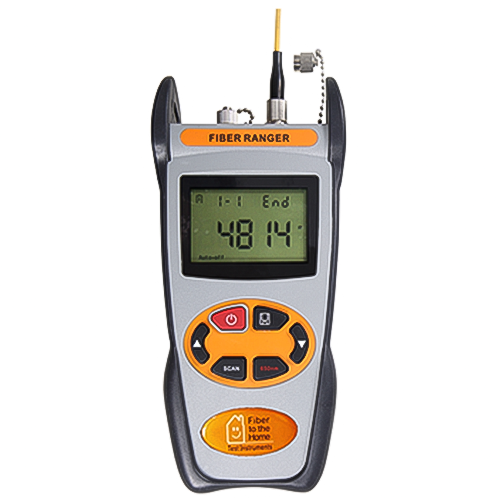

Portable OTDR with advanced analysis software for accurate and easy fiber fault detection and location, designed for efficient fiber network.
Description
Features
- Portable, rugged, lightweight design
- Accurate testing, better repeatability
- Detects up to 8 faults
- Automatic pulse width control
Technical Specifications
| Operating Wavelength | 1550 nm (1310 nm optional) |
| Resolution (dB) | 0.01 |
| Auto Off Time | 10 mins |
| Fiber Type | 9/125 um SM Fiber |
| Optical Connector Type | FC/PC |
| Detector Type | InGaAs |
| Peak Power of Laser | ≥60 mW |
| Measurement Unit | M |
| Reflection Event Dead Zone | 49.21 ft (15 m) |
| Distance Accuracy (Reflection Event) | ± 6.56 ft (2 m) +2 x 10 (-4) x Distance) |
| Wavelength of VFL Option | 650 nm |
| Output Power of VFL Option | >=1 mW |
| Date Storage Capacity | 1000 |
| Communication Port | USB |
| Power Supply | Alkaline Battery (3pcs AA 4.5 V Batteries) |
| Battery Operating Time | ≥5000 measurements |
| Working Temperature (℃) | 23 ℉ to 104 ℉ (-5 ℃ to 40 ℃) |
| Storage Temperature | 14 ℉ to 140 ℉ (-10 ℃ to 60 ℃) |
| Humidity | 0% to 85% (non-condensation) |
| Dimensions(mm) | 7.87 in x 3.54 in x 1.96 in (20 cm x 9 cm x 5 cm) |
| Weight(g) | 11.28 oz (320 g) |
