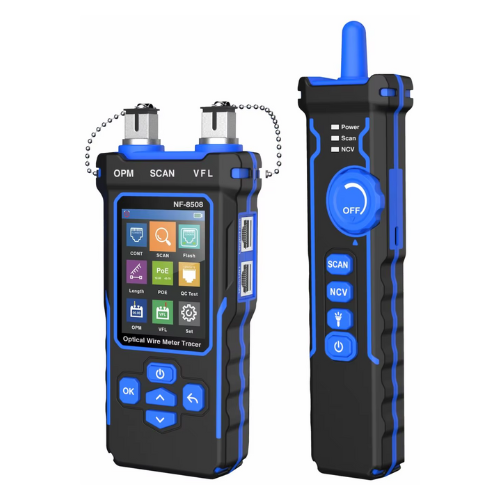

Network Cable Tracker with PoE and Voltage Testing – Amuse Tech Solutions
Advanced network cable tracker with PoE, voltage protection, digital/analog modes, and a wide measuring range for efficient cable testing.
Description
Technical Specifications
| Type | CAT5/CAT6 |
| Â Application | Noyafa TDR RJ45 Network Cable Tracker PoE Tester |
| Function | OPM + VFL + Cable Testing Function |
| Test Method | TDR (Time Domain Reflectometer) |
| Measuring Range | 0m to 2000 m (0–6562 ft) |
| Â Cable Type | Â RJ45 + SC Fiber Cable |
| Cable Type | CAT5/CAT6 |
| Voltage Protection | 60 V |
| Battery Type | C charge |
| Wiremap Port | Yes |
| Cont Max Range | 984.2 ft (300 m) |
| Stp/Ntp Scan Port | Yes |
| Transmitter | Yes |
| Poe | Yes |
| Nvl Power Meter | Yes |
| Crimping | Yes |
| Lower Voltage Warning | Yes |
| Power Supply | 3.7V 1500mAh Polymer Lithium Battery |
| Digital Mode | Yes |
| Analog Mode | Yes |
| Frequency | 455 KHz |
| Rj45 | 300m |
| Full Duplex/Half Duplex | Yes |
| Auto-Nego/Non-Auto-Nego | Yes |
| Automatic Identification | Yes |
| Transmission Rate | 10m/100m/1000m |
| Range Accuracy | <20 M +/-1.6 M, 65.62 ft to 328.08 ft (20 M to 100 M) +/-2.4 M, ≥100M +/-3.2 M |
| End Connection | End connection/Middle jumper |
| Powered By | B cores |
| Voltage Detection | 850/1300/1310/1490/1550/1625 (Wavelength) |
| Rj45-8 Cores | Min length: 82.68 in (210 cm) |
| Voltage | <3.5V ±0.1V, 3.7V |
| Max Working Current | 300mA |
| Ncv Receiver Lamp | Yes |
| Sensitivity Adjustable | Yes |
| Receiver Size | 7.80 in x 1.97 in x 1.10 in (19.8 cm x 5.0 cm x 2.8 cm) |
| Transmitter Size | 5.83 in x 2.76 in x 1.26 in (14.8 cm x 7.0 cm x 3.2 cm) |
