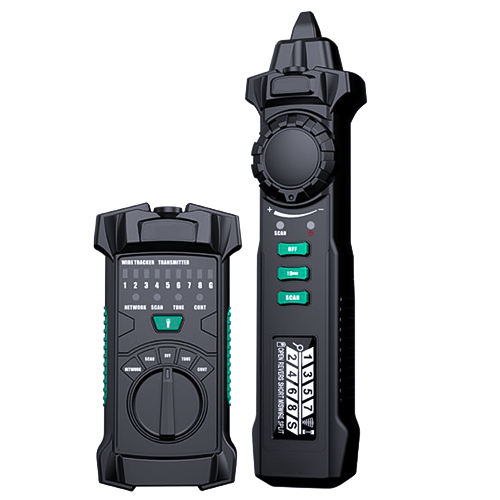

Network Cable Tester with PoE Detection and Voltage – Amuse Tech Solutions
Full cable testing for network with coax, and telephone cables with wire map, TDR technology, PoE, PING, and cable tracing features.
Description
Features
- PoE detection and voltage
- Hub blink for port location
- Wire map with fault distance
- TDR cable length measurement
Technical Specifications
| Indictor | LCD 12.59 in x 9.44 in (32 cm x 24 cm), with back light |
| Cable Test Types | STP/UTP 5E, 6E network, telephone, coaxial cable |
| Function 1 | Continuity, length test |
| Function 2 | PING, PoE detect |
| Tracing Cable types | Cat5e, cat6, cat7, telephone cable, coax cable, power cable |
| Length Measurement | 3.3 feet to 6561.7 feet (1 m to 2000 m) |
| Max. Distance of Wire map | 3.280 ft (1000 m) |
| Max. Distance of Tracing | 3.280 ft (1000 m) |
| Max. Distance of Cable Length | 3.280 ft (1000 m) |
| Max. Distance of Calibration | 164 ft (50 m) |
| Accuracy | up to 98% (after calibration) |
| Compatible Connectors | RJ11, RJ45, PING/POE, BNC |
| Cable Map Indication | LCD (#1-#8) |
| Cable Hunting | RJ11, RJ45, BNC |
| Battery Type | 3.7 V lithium battery 1800 mAh |
| Types of Cable | ≥ 2 cores |
| Battery Type | 3.7 V lithium battery 1800 mAh |
| Dimension | 7.2 in x 3.3 in x 1.4 in (18.3 cm x 5.8 cm x 3.5 cm) |
| Transmitter Size | 7.3 in x 3.15 in x 1.3 in (18.5 cm x 8 cm x 3.2 cm) |
| Dimensions | 4.17 in x 1.25 in x 1.18 in (10.6 cm x 3.2 cm x 3 cm) |
| Work Temperature / Humidity | 50 ℉ to -76 ℉ (10 ℃ to -60 ℃) / 32 ℉ to 158 ℉ (0 ℃ to 70 ℃) |
