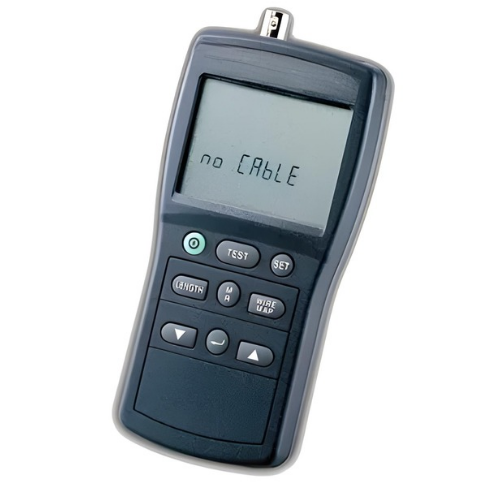

Network Cable Tester with Cable Type Testing – Amuse Tech Solutions
Handheld cable tester for UTP, FTP, and coax cables. Detects wiring issues, measures cable length, and verifies connectivity with easy operation.
Description
Features
- Â Cable type testing
- Wiring issue detection
- Â Distance to fault locating
- Â Easy operation
Technical Specifications
| Display | Two lines characters LCD display (16 characters each) |
| Connector | RJ45 and BNC |
| Category | CAT5 |
| Faults Status | Opens, Shorts, Reversed, Crossed, Split Pair |
| Test Type | TEST provides a pass / fail report on the cable under test. In case a failure has been detected, the display offers additional diagnostic information LENGTH provides the length of each pair (in case a twisted pair cable is being tested) WIRE MAP provides detailed wiring for the cable |
| Accessories | Instruction manual, Carry case, One UTP Category 5 patch cable, One RJ45F to RJ45F female coupler, Cable identifier #1 for the verification of the wire map |
| Input Protection | The inputs withstand telephone ringing and loop voltages |
| Cable Length | Range 3.28 ft to 1.14 ft (1.0 m to 350 m) Resolution 1.64 ft (0.5 m) Accuracy 5% + 3 ft or 5% + 3.28 ft (1 m) |
| Power | 6 pcs 1.5 V size AAA alkaline battery |
| Size / Weight | 591.3 in x 2.83 in x 1.37 in (15.2 cm x 7.2 cm x 3.5 cm) / Approx. 12.64 oz (360 g) |
| Environment Conditions | Operating: 32 ℉ to 122 ℉ (0 C to +50 C)
Storage: -4 ℉ to 140 ℉ (-20 C to + 60 C) |
