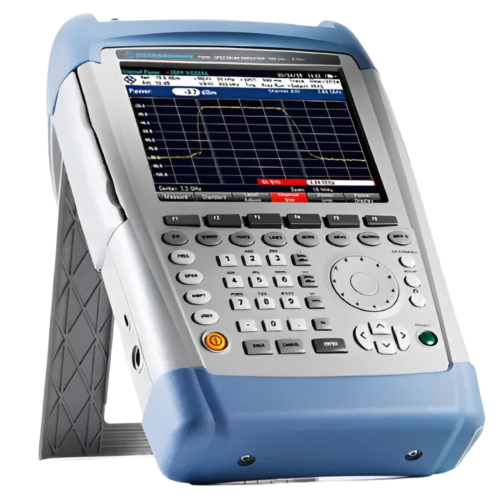

Network Analyzer with VNA and Tracking – Amuse Tech Solutions
Discover the 9 kHz to 20 GHz network analyzer with high sensitivity, low phase noise, and automatic test functions, ideal for field measurements and analysis.
Description
Features
- Handheld spectrum analyzer
- Power meter, VNA options
- Cable and antenna tester
- RF analysis functions
- High measurement accuracy
 Technical Specifications
| Frequency Range | 9 kHz to 20 GHz |
| Phase Noise | -127 dBc |
| DANL @ 1 GHz | -163 dBm |
| Instrument Type | Signal and spectrum analyzer |
| Detectors | Sample, max. peak, min. peak, auto peak, RMS |
| Frequency | 500 MHz |
| Sensitivity | <-141 dBm (1 Hz) with preamplifier <-161 dBm (1 Hz) |
| Demodulation Bandwidth | 20 MHz (for LTE signals) |
| Measurement Uncertainty | < 1 dB |
| Internal Functions | Tracking generator, VSWR bridge with DC voltage supply (bias) |
| Analyzer Type | Two-port network analyzer |
| Ease of Operation | User-configurable, automatic test sequences (wizard) |
| Weight | 6.6 lb (3 kg) |
| Dimension | 7.63 in x 11.81 in x 2.71 in (19.4 x 30 x 6.9 cm) |
