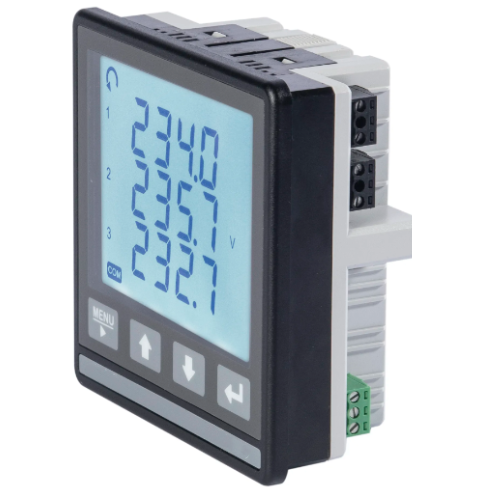

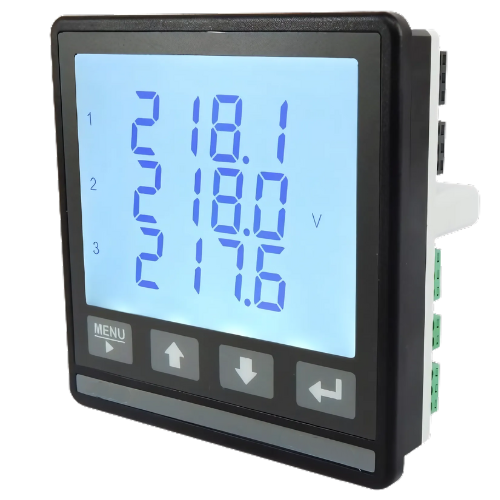

Network Analyzer Multifunction Three Phase Electricity Meter – Amuse Tech Solutions
Ultra-compact network analyzer with bi-directional measurements, data recording, Modbus communication, and remote management options.
Description
Technical Specifications
| Power Supply | Instrument with RS485 port: 230 VACS ±15% / 115 VAC ±15% (on request) |
| Voltage Inputs | Maximum measurable voltage: 600 VAC L-L |
| Current Inputs | Maximum value: 7 A, Starting current: 2 mA |
| Typical Accuracy/Performance Class | Voltage: ±0.2% reading in 10% FS…FS range |
| Network Analyzer | DIN 96 X 96 |
| Display | Highly readable Backlit LCD Screen |
| Measurement range | 600 V |
| Current Input | 1 A or 5 A |
| Power supply | 230 Vac or 85.265VAC /110Vdc |
| Accuracy | Class 0,5 |
| Measurement | FFT Harmonic analysis to 15th order |
| Memory | 8MB. Selectable parameters for data logging |
| I/O | 2 Digital outputs to 1 Digital input |
| Communication | Ethernet Rj45 (Modbus TCP) |
| 2 Digital Outputs (DO) | NPN or PNP, passive opt isolated |
| Maximum Values | 27 VDC to 27 mA |
| Energy Pulse Length (for DO in pulse mode) | 50 ±2 ms ON time |
| Max Output Reaction Time (for DO in alarm mode) | 1s |
| Digital Input (DI) Type | opt isolated |
| Max Humidity (without condensation) | 80% |
| Sinusoidal Vibration Amplitude | 50 Hz ± 0.020 in (0.0075 cm) |
| Protection Degree (Frontal Part) | IP54 (granted only if installed in a cabinet with at least IP54 protection degree) |
| Voltage Range | 80.265 VAC-DC |
| Measuring Terminals (A&V) | 2.5 mm²/14 AWG |
| Terminals for I/O, AUX, RS485 Port | 1.5 mm²/16 AWG |
| Operating Temperature | -13 ℉ to 131 ℉ (-25 °C to +55 °C) |
| Storage Temperature | -13 ℉ to 167 ℉ (-25 °C to +75 °C) |
| Size | 3.77 in x 3.77 in x 1.53 in (9.6 cm x 9.6 cm x 3.9 cm) |
| Weight | Â 10.93 oz (310 g) |
