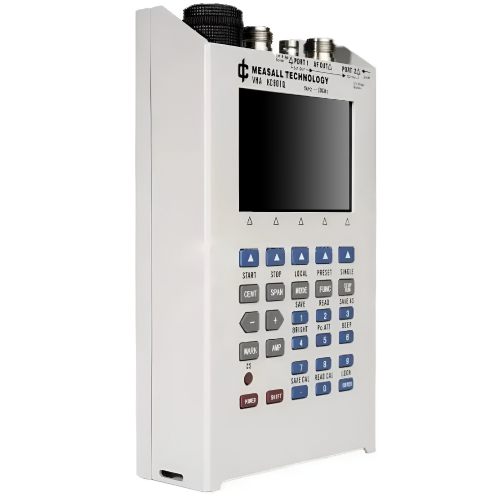

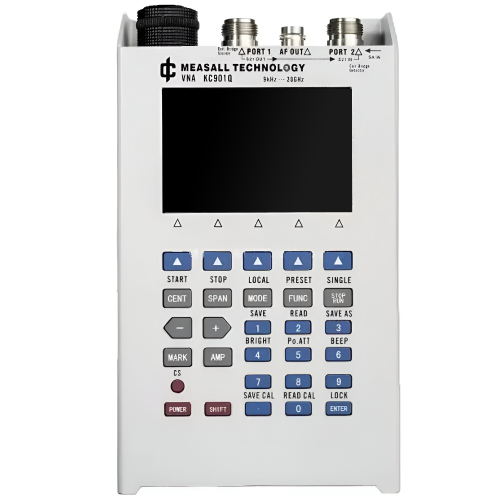

Network Analyzer 9 kHz to 30 GHz with Scanning – Amuse Tech Solutions
Discover the network analyzer, offering a 9 kHz to 30 GHz range, scanning speed, and high sensitivity. Ideal for precise signal analysis.
Description
Features
- 9KHz-20GHz Range
- 1Hz Frequency step
- High accuracy
- Frequency sweeping
- Reflection testing
 Technical Specifications
| Voltage of Power Supply | AC adapter: min. 105 V; max. 230 V, built-in electricity: min. 6.5 V; max. 8.4 V |
| Effective Frequency | Min. 9 kHz; max. 20 GHz |
| Settable Frequency Spectrum | Max. 30 GHz |
| Reflection Frequency Range | Min. 5 kHz; max. 30 GHz |
| Scanning Range (SPAN) | Min. 1 kHz; max. 29.99 GHz |
| Scanning Points | Min. 450pt; max. 3150pt |
| Frequency Resolution | 1 Hz (for all scanning functions) |
| Level Resolution | 0.01 dB |
| Phase Resolution | 0.01° |
| Scanning Speeds | RBW=1kHz: 4ms per point |
| Output Level @1 MHz-7 GHz | Min. -10 dBm; max. 10 dBm |
| Sensitivity @1 MHz-7 GHz | Min. -113 dBm; typical -107 dBm |
| Dynamic Range @1 MHz-1 GHz | Min. 95 dB; typical 100 dB |
| Amplitude Uncertainty (1 MHz-20 GHz) | Typical 0.5 + 0.1L |
| Ports’ VSWR | Port 1 @1 MHz-7 GHz: 1.5 (typical) |
| Temperature Range for Normal Use | 32 °F to 113 °F (0 °C to 45 ℃) |
| Temperature Range Applicable | -40 °F to 131 °F (-40 ℃ to 55 ℃) |
| Humidity | Max. 95% (non-condensation) |
| Dimension | 7.87 in x 4.48 in x 1.81 in (20 x 11.4 x 4.6 cm) |
| Weight | 2.64 lb (1.2 kg) |
