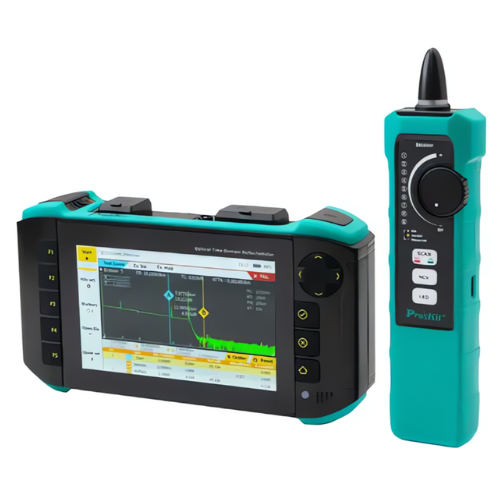

Multifunctional Optical Device with Touch Screen – Amuse Tech Solutions
Discover a reliable multifunctional optical time domain reflectometer with a high-definition touch screen and long-lasting lithium battery
Description
Features
- Multifunctional optical device
- High-definition touch screen
- Long-lasting lithium battery
- Compact and durable design
Technical Specifications
| Use | FTTH |
| Network | Wireless LAN, 4G, Bluetooth, POE, Wired LAN, GPRS, ONVIF, Wiegand |
| Usage | Fiber optic diagnostics and on-off detection |
| Function | Multifunctional touchscreen |
| Feature | Touchscreen |
| Advantage | High working efficiency |
| Application | Fiber optic line inspection |
| Used for | Fiber optic signal transmission processing |
| Dynamic Range | 26/24 dB |
| Testing Range | 0.193.2 mi (0.1150 km) |
| Wavelength | 1310±20 nm, 1550±20 nm |
| OTDR/OLS Interface | FC/UPC (Selectable SC/UPC; FC/APC; SC/APC) |
| Pulse Width | 5 ns to 20 µs |
| Event Dead Zone | 6.56 ft (2 m) |
| Attenuation Blind Zone | 26.25 ft (8 m) |
| Distance Accuracy | ±1.5% |
| OPM | -50 dBm to 26 dBm, 2.5 mm Universal Interface @ 850/980/1270/1300/1310/1490/1550/1577/1625/1650 nm |
| VFL | 10 mW |
| Battery | 7.3 V / 5000 mAh Lithium Battery |
| Battery Life | Standby > 9 hours, measurement > 5 hours |
| Power Supply | Supports a maximum of 5 V/2 A |
| Operating Temperature | 32°F to 122°F (0°C to 50°C) |
| Storage Temperature | -22°F to 158°F (-30°C to 70°C) |
| Size | 7.48 in x 3.94 in x 1.77 in (19 cm x 10 cm x 4.5 cm) |
| Weight | 17.64 oz (500 g) |
