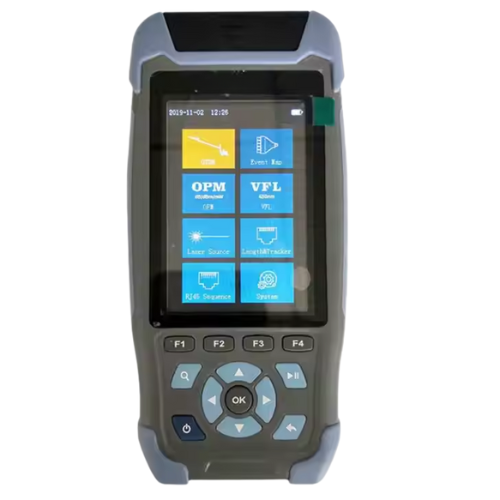

Multifunction Optical Fiber Tester with VFL Light Source Optical Power Meter – Amuse Tech Solutions
Discover the Multifunction Optical Fiber Tester, a compact and versatile tool for fiber optic testing, optical power meter, and light source.
Description
Technical Specifications
| Network | Wireless LAN, WiFi, 4G, 3G |
| Connector Type | SC/FC/ST |
| Fiber Type | Single Mode |
| Wavelength | 1310/1550 nm |
| Dynamic Range | 24/22 dB |
| VFL Output Power | 10 mW |
| Optical Power Meter Module | -50 dBm to +26 dBm |
| Optical Light Source Module | 1310/1550 nm |
| Testing Data Storage | 600 |
| Battery Capacity | 4000 mAh |
| Event Blind Zone | 9.84 ft (3m) |
| ATT Blind Zone | 26.25 ft (8 m) |
| Test Range | 0.31 mi to 37.28 mi (0.50 km to 60 km) |
| Pulse Width | 3 ns to 10 us |
| Ranging Accuracy | ± 3.28 ft (1m + Sampling interval + 0.005% × Test distance) |
| Loss Accuracy | ±0.05 dB/dB |
| Sampling Points | 16 k to 128 k |
| Sampling Resolution | 0.164 ft to 26.25 ft (0.05 m to 8 m) |
| Reflection Accuracy | ±3 dB |
| Data Storage | Internal: ≥600; External: TF Card |
| Laser Safety Level | Class II |
| File Format | SOR Standard file format |
| Connector | FC/UPC (Interchangeable SC, ST) |
| Wave Range | 800nm to 1700nm |
| Interface Type | Universal Joint FC/SC/ST |
| Test Range (Optical Power Meter) | -50 dBm to +26 dBm |
| Uncertainty | ±5% |
| Frequency Identification | CW/270/330/1k/2kHz |
| Calibration Wavelength | 850/980/1300/1310/1490/1550/1625/1650nm |
| Output Power (Optical Power Meter) | ≥-5 dBm |
| Modulation Frequency | 270/330/1k/2kHz |
| Stability | CW, ±0.5dB/15min (Test after 15 minutes of preheating) |
| Connector (VFL) | FC/UPC (Interchangeable SC, ST) |
| Wavelength (VFL) | 650 nm ± 20 nm |
| Output Power (VFL) | ≥10 mW |
| Mode (VFL) | CW/1Hz/2Hz |
| Test Range (VFL) | 984.25 ft (300 m) |
| Display | 3.5 in Color LCD |
| Data Interface | Micro USB |
| External Storage | TF Card |
| Power Supply | Polymer Li-Battery: 3.7V, 4000mAh; Adapter: 5VDC, 2A |
| Battery Life | Standby > 20h; Measuring Time > 12h |
| Relative Humidity | 0 % to 95 % non-condensing |
| Operating Temperature | 14°F to 122°F (-10℃ to +50℃) |
| Storage Temperature | -40°F to 158°F (-40℃ to +70℃) |
| Dimensions | 6.81 in × 3.23 in × 1.46 in (17.3 cm × 8.2 cm × 3.7 cm) |
| Size | 6.81 in × 3.23 in × 1.46 in (17.3 cm × 8.2 cm × 3.7 cm) |
| Weight | ≤12.35 oz (350 g) |
