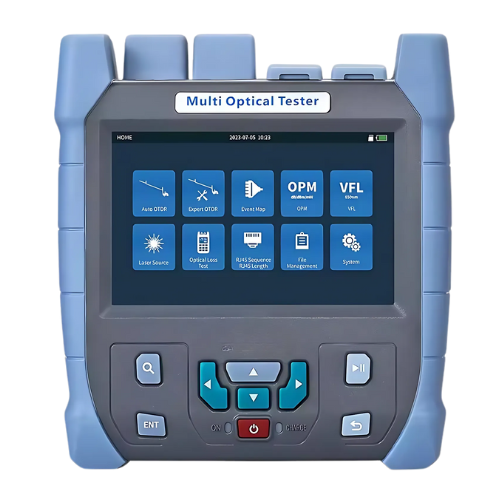

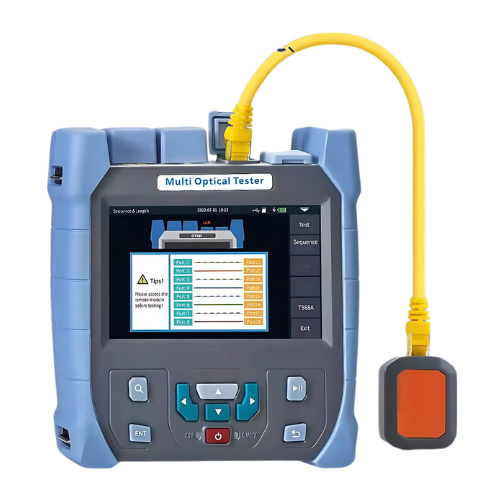

Multifunction Fiber Tester Comprehensive Tool – Amuse Tech Solutions
Versatile multi-in-one fiber optic tester for single-mode and multi-mode networks. Combines OTDR, OPM, VFL, for comprehensive network analysis.
Description
Features
- Multimode compatibility
- Compact design
- High-speed transmission
- Durable fiber build
Technical Specifications
| Wavelengths | 1310nm±20nm / 1550nm±20nm |
| Maximum Dynamic Range | 28/26dB |
| Event Dead Zone | 4.9 ft (1.5m) |
| Attenuation Dead Zone | 19.7 ft (6m) |
| Test Range | Up to 62.1 miles (100km) |
| Ranging Accuracy | ±(2.5 ft (0.75m) + sampling interval + 0.005% × test distance) |
| Linearity | ±0.05dB/dB |
| Maximum Sampling Resolution | ≤0.1 ft (0.03m) |
| Reflection Accuracy | ±3dB |
| File Format | SOR standard file format |
| Loss Measurement Mode | 4-point method / 5-point method |
| Optical Connectors | FC/SC Interchangeable, universal interface |
| Optical Power Meter Range | 800 to 1700nm |
| Optical Power Meter Measuring Range | -70 to +6dBm (optional) / -50 to +26dBm (standard) |
| Visual Fault Locator Operating Wavelength | 650nm ± 20nm |
| Display | Full touch 5-inch, 800 x 480 color LCD |
| Working Hours | Standby > 12h, continuous test >8h |
| Data Interface | Type-C USB |
| Relative Humidity | 0 to 95% Non condensation |
| Operating Temperature | 14 °F to 122 °F (-10 °C to 50 °C) |
| Storage Temperature | -40 °F to 158 °F (-40 °C to 70 °C) |
| Dimension | 6.7 in x 6 in x 2.3 in (17 cm x 15.4 cm x 5.8 cm) |
| Total Weight | ≤ 24,69 oz (700g) with battery |
