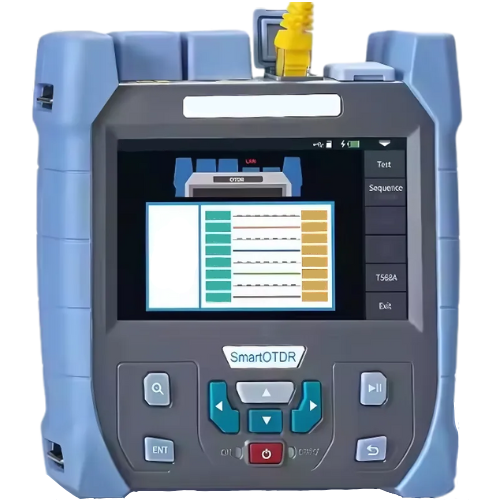

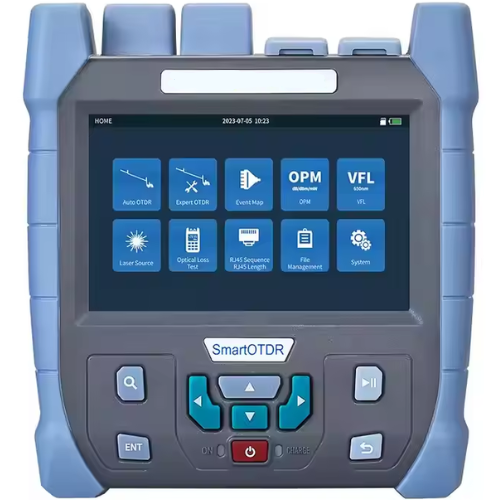

Multifunction Fiber Optic Tester with Power Meter – Amuse Tech Solutions
Versatile optical time domain reflectometer for single-mode and multimode fibers, perfect for FTTH installations. Portable and reliable tool.
Description
Features
- Supports single-mode fibers
- Compatible with multimode fibers
- Includes optical power meter
- Portable and lightweight design
Technical Specifications
| Wavelength | 1310 nm to 1550 nm (+20 nm) |
| Maximum Dynamic Range | 28 dB to 26 dB |
| Event Dead Zone | (1.5 m) 4.92 in |
| Attenuation Dead Zone | (6 m) 19.68 ft |
| Test Range | (500 m to 100 km) 1640 ft to 328084 ft |
| Ranging Accuracy | ±2.46 ft (+ sampling interval + 0.005 %) |
| Linearity | ±0.05 dB/dB |
| Maximum Number of Sampling Points | ≥16000 |
| Maximum Sampling Resolution | ≤0.03 m (0.098 ft) |
| Loss Resolution | 0.01 dB |
| Loss Threshold | 0.20 dB |
| Distance Resolution | (0.01 m) 0.032 ft |
| Operating Temperature | 14 °F to 122 °F (-10 °C to 50 °C) |
| Size | 6.69 in x 6.06 in x 2.28 in (17 cm x 15.4 cm x 5.8 cm) |
| Weight | 1.54 lbs. (0.7 kg) |
