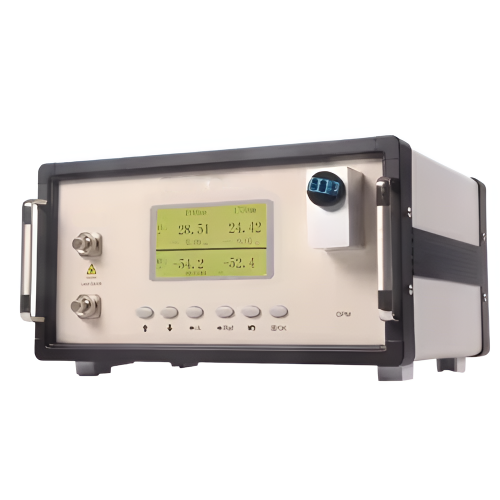

Multifunction Fiber Optic Cable Test with Stable Laser Output – Amuse Tech Solutions
Precise fibre optic testing with high accuracy, multi-functional design, user-friendly interface, wide temperature range, and broad compatibility.
Description
Features
- Wide Wavelength Range
- High Measurement Accuracy
- Versatile Connector Types
- Stable Laser Output
Technical Specificatios
| Connector Type | FC/φ 0.98 in (0.25 cm) universal 0.049 In (0.125 cm) universal, Bare fiber adaptor, support HP8100BA adaptor; |
| Wavelength | 1310/1550 nm or 850/1300 nm |
| Measurement Range | 0 dB to 75 dB |
| Calibration Wavelength | 1310/1550 nm or 850/1300 nm |
| Measurement Accuracy | 1 dB |
| Wavelength | 1310/1550 nm or 850/1300 nm |
| Output Power | ≥-3 dBm |
| Output Stability | ±0.005 dB (one hour @ 77 ℉ (25℃) |
| Connector Type | FC/APC |
| Wavelength | 1310/1550 nm or 850/1300 nm |
| Measurement Range | 0 dBm to -40 dBm |
| Linearity | ±0.03 dB |
| Displaying Resolution | Log：0.01 dB；Linear：0.001 nw/µW/mW |
| Wavelength | 650 nm |
| Central Wavelength | 650 nm ±20 nm |
| Output Power（dBm） | 0(10 dBm for optional) |
| Communication Port | USB |
| Power Supply | AC 170 V to 260 V AC 50 Hz |
| Operation Temperature | 14 ℉ to 140 ℉ (-10 ℃ to +40 ℃) |
| Packing Size | 19/82 in x 12.20 in x 6.69 in (27.5 cm x 31 cm x 17 cm) |
| Weight | 12.78 lb. (5.8 kg) |
