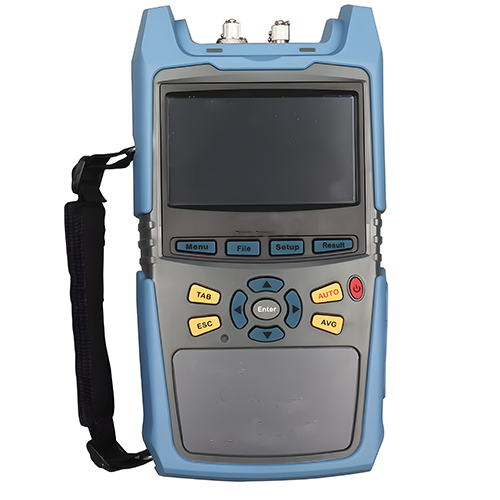

Multifunction Ethernet Tester with Long Working Time – Amuse Tech Solutions
Network Testing with rechargeable lithium battery, automatic charging via AC adapter, and over hours of operation on a full charge
Description
Features
- High accuracy
- Easy operation
- Long working time
- Easy operation
Technical Specifications
| Interface | USB(principal and subordinate each), RJ45 |
| LCD | 4.3 Inch, 16:9 480 x 272 Dot-Matrix TFT Touch Screen |
| Power | AC/DC Adapter (Input AC 90-240 V±10%, Output 12 V) |
| Battery | Rechargeable Li-Ion Battery Inside (charging Time< 4hours, working Time> 8hours) |
| Distance Accuracy | ± 1.64 ft (0.5 m) +0.0001% × Distance Sampling Resolution |
| Distance | 16.40 ft to 124 mi (5 m to 200 km) |
| Pulse Width | 5 μs to 20 μs |
| Measurement Time | User Defined |
| Attenuation Accuracy | 0.005 dB |
| Loss Threshold | 0.001 dB |
| Loss Resolution | 0.001 dB |
| Distance Resolution | 0.09 ft (0.03 m) |
| Sampling Quantity | 128000 |
| Linearity | 0.05 dB/dB(AE2300) 0.03 dB/dB(AE2300H) |
| Data Storage | 3000 pcs |
| VFL | 10 mW AE2300(option), AE2300H(standard) |
| Fiber Adapter | FC/PC, SC/PC |
| Relative Humidity (RH) | <80% |
| Working Temperature | 32 ℉ to 104 ℉ (0 ℃ to 40 ℃) |
| Storage Temperature | -4 ℉ to 158 ℉ (-20 ℃ to 70 ℃) |
| Dimension(L*W*H) | 5.31 in x 9.84 in x 2.75 in (13.5 cm x 25 cm x 7 cm) |
| Weight | < 2.20 lb (1kg) |
