Multi Wavelength Testing Event Mapping Display – Amuse Tech Solutions

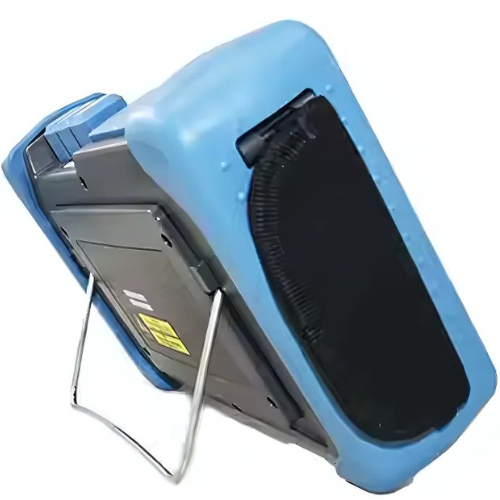

Compact, high-performance OTDR for optical network testing, offering precision, reliability, and efficiency in maintenance and troubleshooting.
Description
Features
- Multi-wavelength Testing
- Event Mapping Display
- Visual Fault Locator
- Power Meter Integration
Technical Specifications
| Working Wavelength | 1310/1490/1550/1625 nm |
| Max Dynamic Range | 42/40 dB |
| Min Event Dead Zone | 2.62 ft  (0.8 m) |
| Attenuation Dead Zone | 26.25 ft (8 m) |
| Optical Output Port | FC/UPC |
| Display | 7 in TFT-LCD with LED screen |
| Support | Event maps, OPM, VFL, LS |
| Interface | 1 × RJ45 port, 3 × USB port (USB 2.0, Type A USB × 2, Type B USB × 1) |
| Battery | 7.4 V (dc) / 4.4 Ah lithium battery (with air traffic certification) |
| Operating Time | 12 hours, Telcordia GR-196-CORE |
| Charging Time | <4 hours (power off) |
| Testing Modes | Visual fault locator: Visible red light for fiber identification and troubleshooting |
| Light Source | Stabilized Light Source (CW, 270 Hz, 1 kHz, 2 kHz output) |
| Field Microscope Probe | Field microscope probe |
| Data Storage | Internal memory: 4 GB (about 40,000 groups of curves) |
| Relative Humidity | 0 % to 95 % non-condensing |
| Operating Temperature | 50°F to 122°F (10°C to 50°C) |
| Storage Temperature | -40°F to 158°F (-40°C to 70°C) |
| Dimension | 8.7 in x 9.8 in x 2.6 in (22.1 cm x 24.9 cm x 6.6 cm) |
| Weight | 3.08 lbs. (1.4 kg) |
