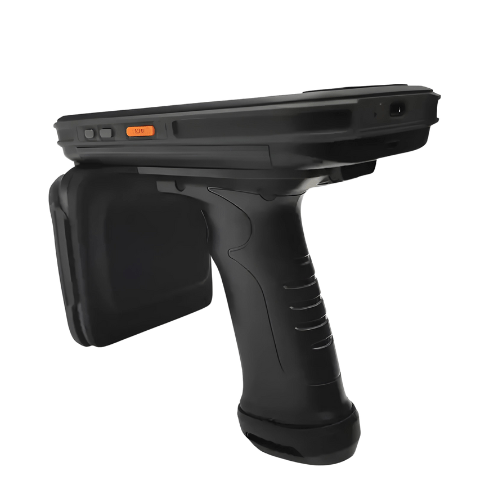

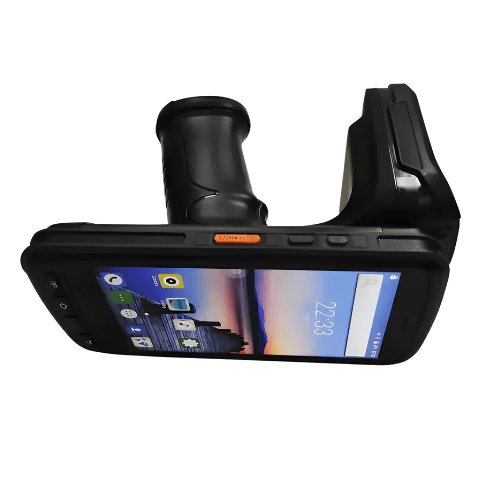

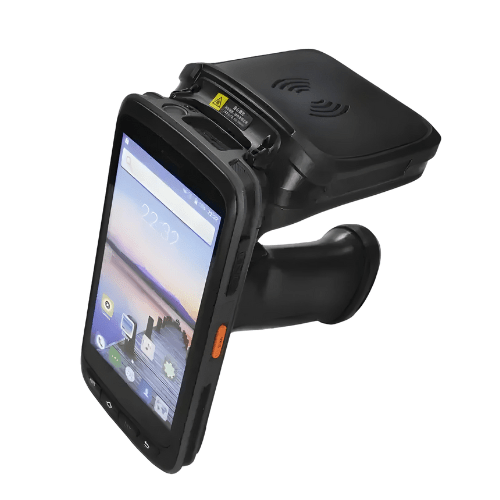

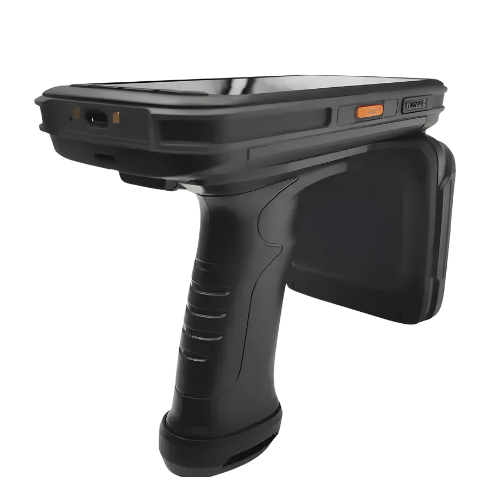

Multi-Protocol UHF RFID Reader with Dual Polarized Antenna & 13 MP Camera – Amuse Tech Solutions
Handheld RFID reader with 920 to 925 MHz frequency, 13 MP camera, dual polarized antenna, Android OS, 8000 mAh battery, and up to 128 GB expansion.
Description
Technical Specifications
| Frequency | 920 MHz to 925 MHz or 902 MHz to 928 MHz or 865 MHz to 868 MHz |
| Protocol | ISO18000-6C or EPC C1 GEN2 |
| Antenna Parameters | Linearly polarized antenna (1.8 dbi) or circularly polarized antenna (4 dbi) |
| Display | 5.2 in (13.2 cm) IPS |
| Touch Panel | Corning Gorillas Glass, multi touch panel, gloves and wet hand support |
| Power | Li-On, rechargeable, 8000 mAh |
| Expansion Slot | 1 Slot for SIM, 1 slot for SIM or TF card |
| Audio | Speaker, 2 microphones 4 Front keys, 1 power key, 2 scan keys, 1 multifunctional key |
| Sensors | Gravity sensor, light sensor, proximity sensor |
| CPU | Cortex-A53 Quad Core 1.45 GHz |
| RAM + ROM | 2 GB + 16 GB |
| Expansion | Supports up to 128 GB Micro SD card |
| Camera | 13 MP Autofocus Flash |
| Antenna | Linear Polarization (1.8 dBi) Circular Polarization (4 dBi) |
| Power | 1 W |
| Group Rate | 200 tag per sec |
| R Or W Range | (25 m) 82 ft |
| Drop Specification | Multiple (1.5 m) 4.9 ft drops to the concrete across the operating temperature |
| Tumble Specification | 1000 X (0.5 m) 1.6 ft falls at room temperature |
| ESD | ± 15 KV air discharge, ± 16 conductive discharges |
| Bluetooth | Bluetooth 4.0 BLE |
| Battery Capacity | Rechargeable lithium polymer battery 8000 mAh |
| Power | 1 W (30 dbm, support + 5 dbm to +30 dBm adjustable) |
| Group Read Rate | 200 Tags per second (circular polarization) |
| MOQ | 1 |
| Power Supply | 3.7 V 4000 mAh Li-ion Battery |
| Barcode Scanning | 1D Linear Scanner or 1D Symbologies or 2D Symbologies or 2D Image Scanner |
| Version | English |
| Interfaces | USB 2.0 Type-C, OTG |
| Barcode Scanning (Optional) 1D Linear Scanner (Quad-Core) | Zebra SE965 / Honeywell N4313 |
| 1D Symbologies | UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc. |
| 2D Imager Scanner (Quad-Core) | Zebra SE4710 / SE4750 / SE4750MR Honeywell N4313 |
| 2D Imager Scanner (Octa-Core) | Zebra SE4750 / SE4750MR |
| 2D Symbologies | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc. |
| Operating Temperature | – 4 °F to 122 °F (- 20 ℃ to 50 ℃) |
| Storage Temperature | – 40 °F to 158 °F (- 40 ℃ to 70 ℃) |
| Dimensions | 6.4 in X 3.1 in X 0.9 in (164.2 mm × 80 mm × 24.3 mm) |
| Weight | 23 oz (654 g) |
