Multi-Port Modbus Serial to EtherNet/IP Industrial Gateway – Amuse Tech Solutions

Description

Overview

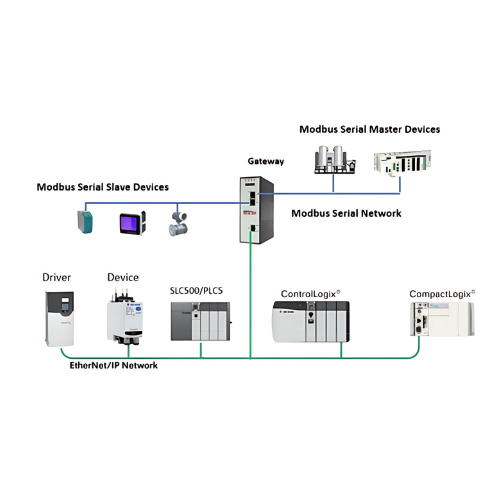

Amuse Tech Solutions multi-port modbus serial to ethernet/ip industrial gateway The EtherNet/IP protocol is one of the primary connectivity tools to the different Rockwell Automation platforms. The Explicit Messaging aspect of the protocol has been implemented in the units to provide the data transfer link between the units and the Rockwell Automation hardware. In Server mode, the module accepts commands from one or more clients to read/write data stored in the module’s internal registers In Client mode, the module controls the read/write data transfer between the gateway and other EtherNet/IP devices. Data transfer can be initiated and executed without any ladder programming being required in the Rockwell Automation hardware.



Features

• The Modbus Serial driver interfaces with a common internal database in the module.
• This permits the sharing of data between the gateway and Modbus Serial master devices. The module controls the read/write data transfer between the gateway and other Modbus Serial slave devices

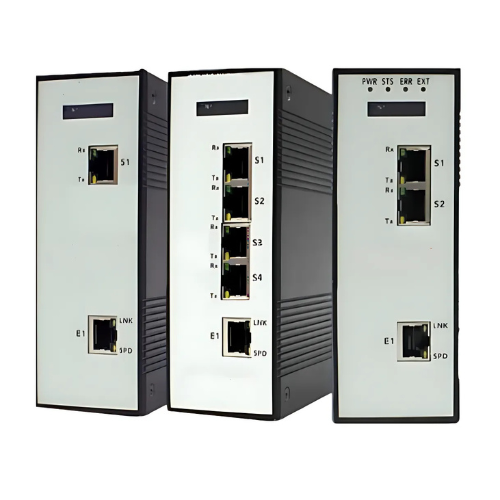

• The gateways are stand-alone DIN-rail mounted gateways that provide 1 Ethernet port for communication, allowing for configuration and diagnostics.



Technical Specifications

EtherNet/IP Specifications:

Parameters	Details
Class 1 I/O Connections
Number of Class 1 I/O Connections	2-20
I/O connection sizes	248/248 words
Max RPI time	2ms -20 ms per connection
Class 3 Server Connections
Number of Class 3 Server Connections	1-15
Supported PLC Types	PLC2、PLC5、SLC、ControlLogix、CompactLogix
Supported Message Types	PCCC and CIP
Class 3 Clinet Connections
Number of Class 3 Client Connections	5-15
CIP Services Supported	0x4C – CIP Data Table Read 0x4D – CIP Data Table Write
Command List	Support for 120 commands per Client, each configurable for command type, IP address, register to/from addressing and word/bit count
Command Sets	PLC-2/PLC-3/PLC5 Basic Command Set PLC5 Binary Command Set PLC5 ASCII Command Set SLC500 Command Set Custom Command Set



Modbus Specifications:

Parameters	Details
Supported Modbus Function Codes	1: Read Coil Status 2: Read Input Status 3: Read Holding Registers 4: Read Input Registers 5: Force (Write) Single Coil 6: Preset (Write) Single Holding Register 15: Force (Write) Multiple Coils 16: Preset (Write) Multiple Holding Registers
Supported Serial interfaces	124
Supported Master/Slave	Master or Slave (software selectable)
RS Interface	RS232, RS422, and RS485 (software selectable)
Command List	Up to 64 or 128 commands per Master port, each fully configurable for Function Code, slave address, register to/from addressing and word/bit count.
Status Data	Error codes available on an individual command basis. In addition, a slave status list is maintained per active Modbus Master port.
Command List Polling	Each command can be individually enabled or disabled; including continuous and on change of data, and dynamically user or automatic enabled.



Hardware Specifications:

Parameters	Details
Power Supply	24 VDC nominal 10 VDC to 36 VDC allowed Positive, Negative, GND Terminals
Current Load	125mA normal @ 24 VDC normal
Operating Temperature	-35°C to 75°C
Storage Temperature	-40°C to 80°C
Relative Humidity	5% to 95% RH with no condensation
Shock	IEC 60068-2-27；15G @ 11ms， 3-Axis (Operational)
	IEC 60068-2-27；30G @ 18ms， 3-Axis (Non-Operational)
Vibration	IEC 60068-2-6；5G @ 10Hz to 150Hz
Dimensions	2.13×4.18×5.72 inch
(H x W x D)	54.2(Width) x 106.1(Depth) x 145.4(Height) mm
Weight	596g
LED Indicators	PWR Power on EXT Network Status/ Connection Status STS Module Status ERR Hardware Fault/Communication Fault
OLED Display	Part Number，Firmware Number，IP address， Module Status ， ERR information
Ethernet Port(S)	10/100Mbit half-duplex RJ45 Connector Electrical Isolation 1500 Vrms at 50 Hz to 60 Hz for 60 seconds, applied as specified in section 5.3.2 of IEC 60950: 1991 Ethernet Broadcast Storm Resiliency = less than or equal to 5000 [ARP] frames-per-second and less than or equal to 5 minutes duration
Serial Port(S)	The number of serial communication ports depends on the gateway type, and the combination of protocols.
Serial Port Isolation	2500 Vrms port signal isolation per UL 1577 serial port communication signal uses RF (Radio Frequency) modulation signal as isolation media, IC chip model is Silicon Labs Si844x (Si8440, Si8441, Si8442).
