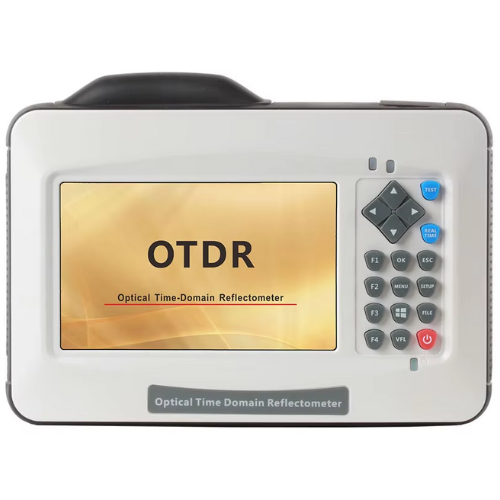

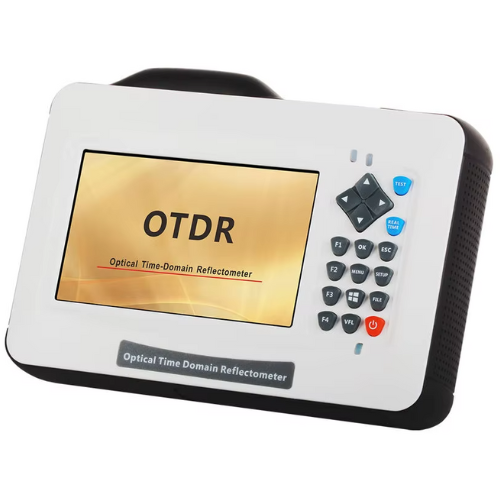

Multi Functional Fiber Optic Tester with High Dynamic Range Capability – Amuse Tech Solutions
Discover a compact and versatile design for efficient fiber optic network testing, this lightweight tool ensures precise diagnostics with minimal dead zones.
Description
Features
- Compact and lightweight design
- Built-in power meter included
- High dynamic range capability
- Visual Fault Locator integrated
- Minimal dead-zone performance
- Supports 1310/1550nm wavelengths
- User-friendly touchscreen interface
- Reliable FTTX testing tool
Technical Specifications
| Use | FTTX |
| Network | FTTX |
| Touch Screen | 5-inch TFT-LCD touchscreen |
| Built-in Power Meter | Yes |
| Wavelength | 1310/1550nm |
| Dead zone | 1/5m |
| Built-in VFL (Visual Fault Locator) | Yes |
| Dynamic Range | 30/28dB |
| VFL Power | 10mW, CW/2Hz |
| Pulse Width | 3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 5μs, 10μs, 20μs |
| Sampling Resolution | Minimum 0.05m |
| Sampling Points | Maximum 128,000 |
| Linearity | ±0.03dB/dB |
| Loss Threshold | 0.01dB |
| Loss Resolution | 0.001dB |
| IOR | 1.2000 to 1.7000 |
| Distance Accuracy | ± (1m + test distance × 3 × 10⁻⁵ + sampling resolution) (excluding IOR uncertainty) |
| Memory Capacity | 80,000 groups curve |
| VFL | 10mW, CW/2Hz |
| OPM Calibrated Wavelengths | 850/1300/1310/1490/1550/1625/1650 nm |
| OPM Test Range | -60 dBm to +5 dBm |
| Interface | 3× USB ports (Type A×2, micro-USB×1) |
| Battery | 7.4V/3300mAh lithium battery, 6 hours continuous work (backlight off), 3.5 hours charge time |
| Optional Battery | 5000mAh lithium battery |
| Optional Accessories | SC/LC adapter, Launch cable box |
| Data Storage | Pluggable 8GB micro-SD card |
| Working Humidity | 0 % to 85% (non-condensing) |
| Distance Resolution | 0.0328 ft (0.01 m) |
| Working Temperature | 14 °F to 122 °F (-10 ℃ to 50 ℃) |
| Size | 7.68 in × 5.55 in × 1.73 in (19.5 cm × 14.1 cm × 4.4 cm) |
| Weight | 1.26 lb (0.57 kg) |
