Description

Overview

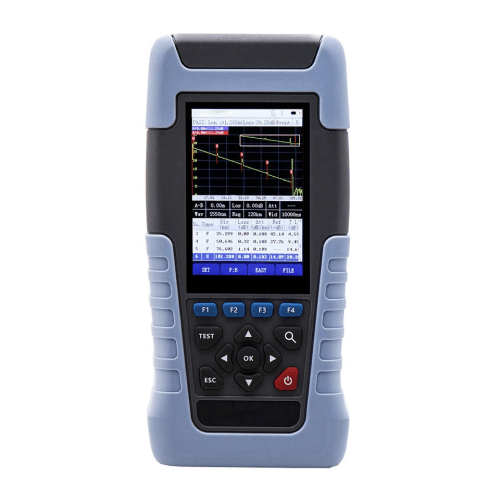

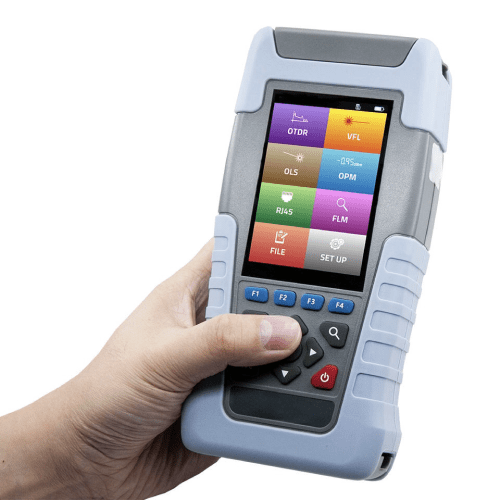

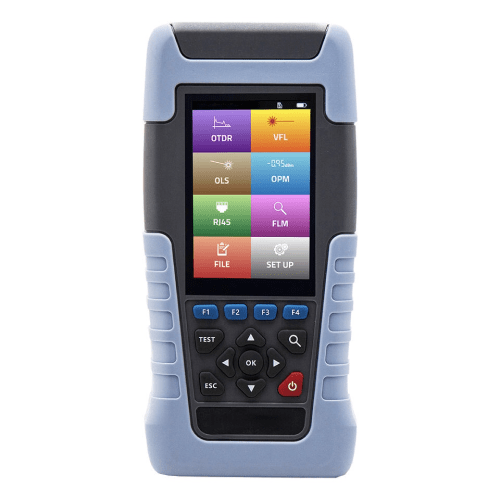

Amuse Tech Solutions ethernet cable tester is a multi-functional OTDR that adopts a 3.5 in (8.89 cm) color screen. It integrates OTDR, visual fault location, event map, optical power meter, light source, RJ45 cable test, multi-functions to help customers efficiently solve the field test and maintenance. Intelligent power management, 15 hrs of super long standby, efficient guarantee of field test and maintenance.



Features

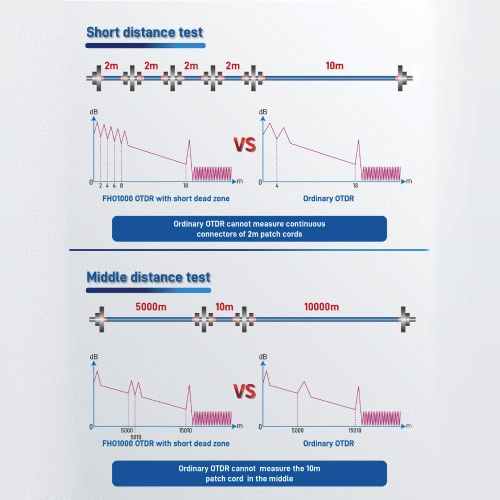

• 28 ft or 13.12 ft (1 m or 4 m) small dead-zone
• 56 ft (2 m) patch cord can be accurately tested
• Fiber Link Map (FLM), similar with iOLM

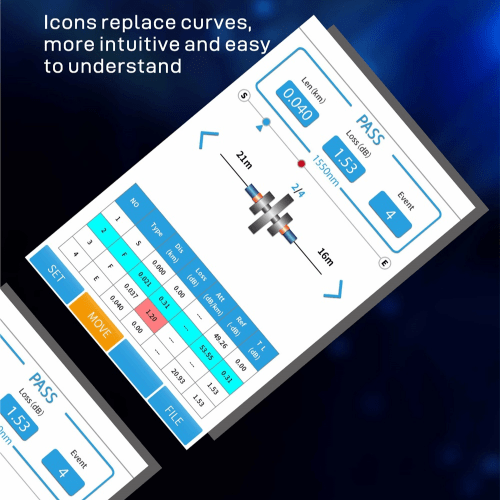

• Display optical fiber events with intuitive icons
• Real time mode, fast test response
• More than 80,000 test curves can be stored

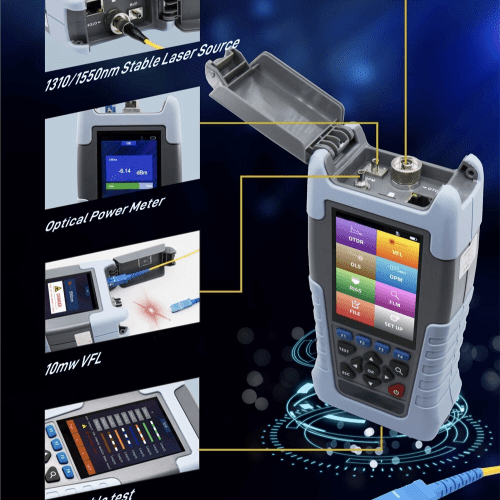

• Multi-functions: 10 mw VFL or Stable OLS or OPM or RJ45 cable test
• Anti falling and anti-seismic
• 5000 mAh Battery, long working time



Technical Specifications

Dynamic range	22dB to 20dB
Refractive index	1.000 to 1.999
Sampling points	64000
Loss accuracy	0.1 dB
Linearity	0.1 dB
Reflectance accuracy	2 dB
RJ45 line sequence test	TIA568-A and TIA568-B standard
Electrical interface	RJ45 port × 2, RJ45 remote module, USB Type-C
Data storage	Pluggable 8 GB micro-SD card
Battery	5000 mAh lithium battery
Working humidity	0% to 85% (non-condensing)
Working temperature	14 °F to 122 °F (-10 ℃ to 50 ℃)
Output Power	Greater than -5 dBm
Modulation Frequency	270 k or 330 k 1 k or 2 kHz
Stability	CW 0.5 dB or 15 min (Test after 15 mins of preheating)
Connector	FC or UPC (Interchangeable SC, ST）
Work Wavelength	650 nm ±20 nm
Output Power	Greater than 10 mW
Mode	CW or 1 Hz or 2 Hz
Connector	FC or SC or ST
Dimension	7.59 in x 3.70 in x 1.85 in (192.9 mm × 93.8 mm × 47 mm)
