Multi-Functional Ethernet Network Tester with 7-Inch LCD & 10G Support – Amuse Tech Solutions
Portable network tester with 10G capability, 7-inch LCD, and multiple interface support for comprehensive field testing.
Description
Overview
Multi-Functional Ethernet Network Tester with 7-Inch LCD & 10G Support is a multi-functional portable comprehensive test platform integrating E 1, V 35, 10 M or 100 M or 1000 M or 10 G ethernet, optical power meter test and other physical interfaces. It provides rich and powerful data network testing functions, easy and intuitive â–· operation, dull English display interface, direct display of test and statistical results, easy to carry, for engineering and maintenance personnel to carry out on-site installation, commissioning, and maintenance to save a lot of time, multi-port, multi-functional integrated design, to improve engineering and maintenance efficiency, reduce costs to provide strong support.
Features
- Portable multi-port, multi-functional integrated design
- 7 in (17.78 cm) color touch screen
- Full English display interface, intuitive and convenient operation
- 5000 mAh high-capacity lithium battery
- Test result storage and printing
Technical Specifications
| Display | High resolution 7 in (17.78 cm) color LCD display with LED backlight |
| Storage | Can store and query 1000 test results, support printing |
| Battery Capacity | Intelligent lithium battery 5000 mAh, 12.6 V |
| Endurance Time | 4 hrs |
| Charging Time | 5 hrs |
| Operating Temperature | 32 °F to 122 °F (0 °C to 50 °C) |
| Storage Temperature | -4 °F to 158 °F (-20 °C to 70 °C) |
| Working Humidity | 5% to 90% non-condensing |

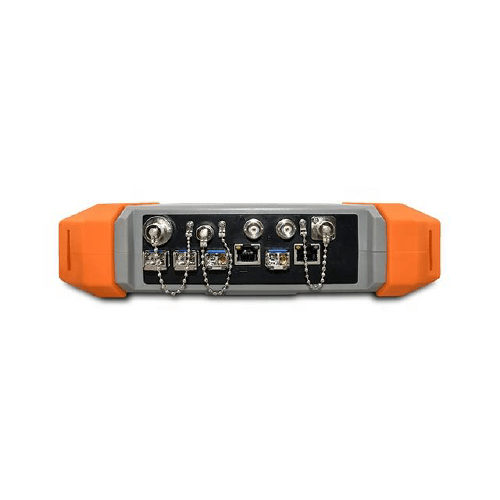

| Test Port | Datacom data interface: V.35 functionality test; El interface: El link with G.703 (E1) Test capability (75 ohm to 120 ohm); Ethernet interface: 10 M or 100 M or 1000 M dual optical gigabit ethernet; Optical power meter interface; OTDR interface |
| Red Light Sourcing Testing | Working wavelength: 650 nm LD; Testing distance: 1.86 mi to 3.10 mi (3 km to 5 km) |
| Optical Power Testing | Test wavelength: 850 nm or 1319 nm or 1550 nm or 1625 nm; Test range: -50 dBm to 26 dBm or -70 dBm to 10 dBm |
| 10 M or 100 M or 1000 M or 10 10 Gigabit Ethernet Testing |
Dual optical interface, support 850 nm or 1300 nm or 1310 nm or 1550 nm; High line speed IP ping test; Provide RFC2544 (throughput rate, delay, packet loss rate, back-to-back) function testing; Y.1564 (service configuration test, service performance test) DFTP service test upstream and download stream channel bandwidth; Jitter, error and other tests |
| El or V.3 Functional Testing |
Provide El, V.35 ports; Support BERT error feature testing Support frame relay, HDLC, and PPP protocol testing; Support ping and loopback ping test on El and V.35 links; Automatic destination IP address detection (HDLC or PPP or FR) function |
| Weight | 5.51 lb (2.5 kg) |
