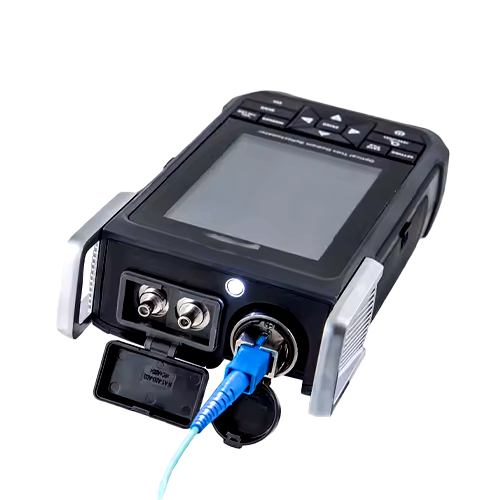

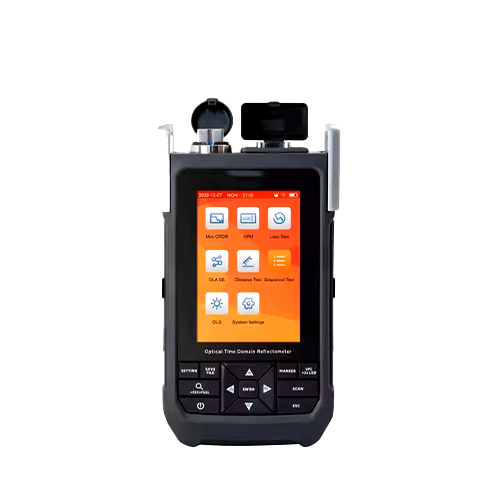

Multi Function Power Meter with Visual Fault Locator – Amuse Tech Solutions
Versatile fiber optic tester with multiple functions, including OTDR, OPM, VFL, and OLS, for efficient network analysis and maintenance.
Description
Features
- Advanced OTDR Testing
- Integrated Power Meter
- Visual Fault Locator
- Light Source Included
Technical Specifications
| Wavelength | 1310/1550nm |
| Dynamic Range | 22 dB to 20 dB |
| Attenuation Dead Zone | 22.97 ft (7.0 m) |
| Event Dead Zone | 3.28 ft (1.0 m) |
| Distance Setting | Max 49.71 mi (80 km) |
| Connector | FC/UPC interchangeable adapter or customize |
| Pulse Width | 5 ns to 20 μs |
| OPM Function | +26 dBm to -50dBm, 850/1300/1310/1490/1550/1625nm, 2.5mm UPP |
| VFL Function | 10 mW, 2.5 mm universal connector |
| OLS Function | Same wavelength and connector as OTDR |
| Storage | Internal memory or TF card (optional) |
| Power & Data Port | TYPE-C |
| Operating Temperature | 14°F to 122°F (-10°C to 50°C) |
| Dimension | 6.3 in x 3.3 in x 1.5 in (16 cm x 8.5 cm x 3.8 cm) |
| Weight | About 15.1 oz (430 g) |
