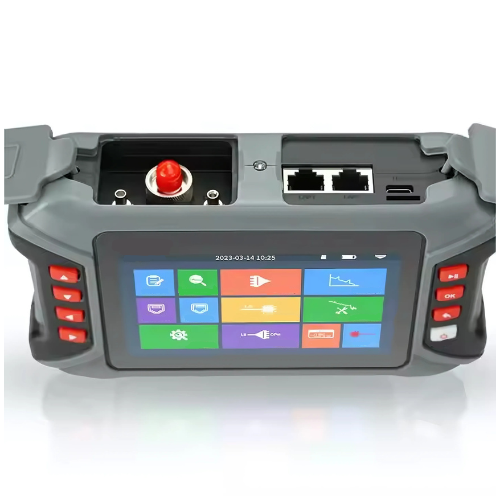

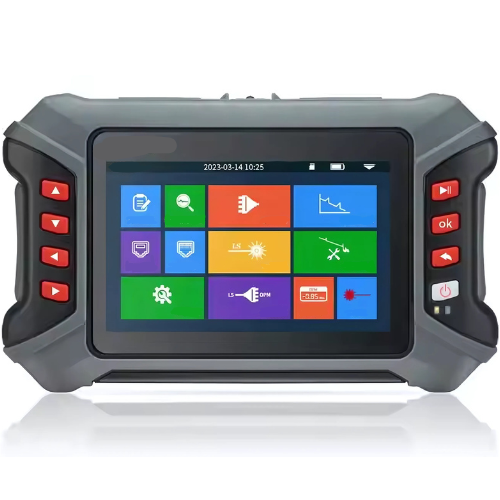

Multi Function High Precision OTDR Dual Wavelength Support – Amuse Tech Solutions
Compact OTDR with accurate fiber measurement, long battery life, multi-wavelength support, advanced features, and reliable testing performance.
Description
Features
- High Precision Measurement
- Dual Wavelength Support
- Long Battery Duration
- Advanced Testing Capabilities
Technical Specifications
| Wavelength Range | 1310 nm/1550 nm |
| Dynamic Range (dB) | 28/26 |
| Event Dead Zone | 4.92 ft (1.5 m) |
| Attenuation Dead Zone | 26.25 ft (8 m) |
| Measuring Distance | 3.1 mi to 62.1 mi (5 km to 100 km) |
| Reflection Measurement Accuracy | ±5 dB |
| Data Storage | ≥1000 Test Curves |
| Screen Type | 3.5-in color touch screen |
| Battery Working Time | ≥10 hours |
| Attenuation Measurement Precision | ±0.05 dB/dB |
| Reflection Measurement Precision | ±4 dB |
| Communication Interface | USB |
| Red Light Source Output Power | ≥2 mW |
| Red Light Source Test Distance | ≥5 km |
| Battery | Internal lithium-ion battery: 7.4V, 4400mAh |
| Operating Temperature | 23 °F to 122 °F (-5 °C to 50 °C) |
| Storage Temperature | -4 °F to 158 °F (-20 °C to 70 °C) |
| Relative Humidity | 0 % to 95 % (No condensation) |
| Weight | ≤2.20 lb. (1 kg) |
| size | 8.19 in × 4.33 in × 2.20 in (20.8 cm × 11.0 cm × 5.6 cm) |
