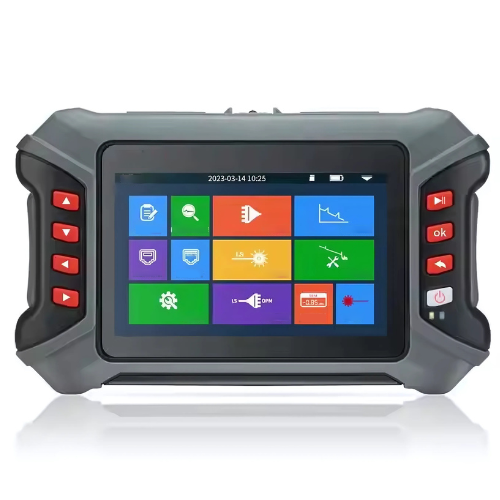

Multi Function High OTDR with Long Battery Life – Amuse Tech Solutions
Compact OTDR with precise fiber measurement, dual-wavelength support, long lasting battery and long-time warranty for reliable testing.
Description
Features
- High precision measurement
- Dual wavelength support
- Long battery life
- Advanced features
Technical Specifications
| Optical Fiber Type | Single Mode |
| Center Wavelength | 1310 nm / 1550 nm ±20 nm |
| Maximum Dynamic Range | 28/26 dB |
| Event Blind Area | 4.92 ft (1.5 m) |
| Attenuation Blind Area | 26.24 ft (8 m) |
| Reflection Measurement Accuracy | ±5 dB |
| Display Type | 3.5 in Touch Screen |
| Battery Working Time | ≥10h |
| Optical Interface | FC/UPC (interchangeable SC, ST) |
| Test Scope | 1.64 ft, 0.62 mi, 1.24 mi, 2.48 mi, 4.97 mi, 9.94 mi, 19.88 mi, 39.76 mi, 62.14 mi (500 m, 1 km, 2 km, 4 km, 8 km, 16 km, 32 km, 64 km, 100 km) |
| Pulse Width | ± 3.28 ft (1 m) + Sampling Interval + 0.005% × Distance) |
