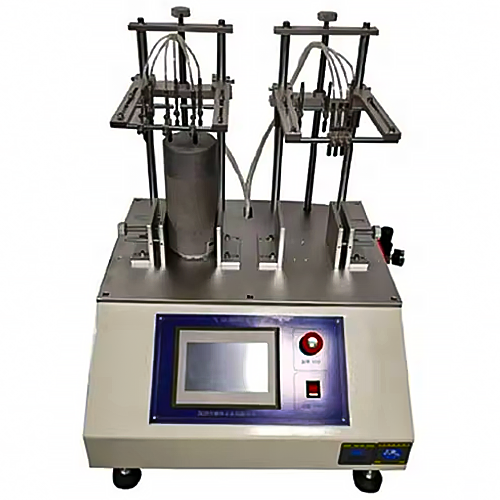

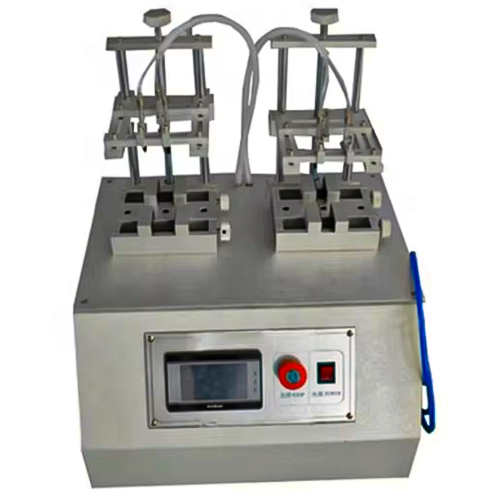

Mobile Pressure Tester with Electronic Power Source – Amuse Tech Solutions
Discover a versatile testing machine with adjustable stroke, variable speed control, flexible load options for precise testing and reliable results
Description
Features
- Electronic Power Source
- Adjustable Test Stroke
- Multi-Station Testing Capability
- Variable Test Speed Control
- Flexible Load Weight Options
- Compact Dimensions for Storage
- High Conduction Times Counter
- Adjustable Test Rod Range
Technical Specifications
| Power | Electronic |
| Motion Pattern | The cylinder drives the head to move up and down |
| Test Conduction Times Counter | 0 to 999999 times |
| Test Times Counter | 0 to 99999999 times (preset, LCD display) |
| Working Power | AC 220 V, 50 Hz |
| Test Stroke | 0 in to 2.36 in (0 cm to 6 cm) (manually adjustable) |
| Fixture Conventional Clamping Range | 2.36 in × 2.76 in (6 cm × 7 cm) |
| Test Rod Fixing Device Adjustable Range | 0 in to 7.09 in (0 cm to 18 cm) |
| Test Station | 1 to 6 (at the same time) |
| Test Speed | 5 to 60 beats / min (knob adjustable, LCD display) |
| Load Weight | 1.76 ounces, 3.53 ounces, 7.05 ounces, 10.58 ounces, 17.64 ounces (50g, 100g, 200g, 300g, 500g) (optional) |
| Machine Weight | 0.03 tons (30 kg) |
| Overall Dimensions (L × W × H) | 19.69 in × 15.75 in × 21.65 in (50 cm × 40 cm × 55 cm) |
