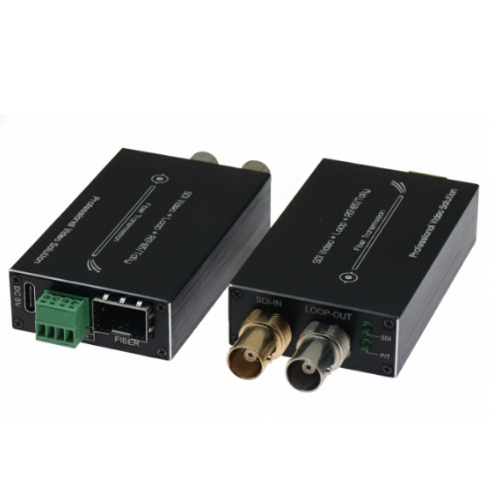

Mini-type 3G-SDI to Fiber Converter with Tally & Reverse RS485 – Amuse Tech Solutions
Compact 3G/HD-SDI fiber converter with loop output, sending SDI video, embedded audio, tally, and RS485 control over a single fiber link.
Description
Technical Specifications
| Category | Item | Specification |
| Fiber Optical Interface | Fiber Interface | Simplex LC |
| Transmission Distance | 550 m – 20 km | |
| Wavelength | 1310 nm / 1550 nm | |
| Video | Video Interface | BNC |
| Video Input/Output Impedance | 75 Ω | |
| Video Input/Output Voltage | Typical 1 Vpp, Min 0.5 Vpp, Max 1.5 Vpp | |
| Video Bit Rate | Max 3.2 Gb/s | |
| Differential Gain (10–90% APL) | <1% | |
| SDI Format Support | Supported Formats | 625/25 PAL |
| 525/29.97 NTSC, 525/23.98 NTSC | ||
| 720p50, 720p59.94 | ||
| 1080i 23/24/30/50/59.94 | ||
| 1080p 23.98/24/30/50/60 | ||
| Video SDI Standard | Standards | 270 Mbps (SD-SDI) |
| 1.485 Gbps/M (HD-SDI) | ||
| SMPTE 425M 3 Gb/s Mapping (3G-SDI) | ||
| SMPTE 424M 3 Gb/s Serial Interface (3G-SDI) | ||
| Data | Physical Interface | Industrial standard screw terminal |
| Data Type | Tally & Reverse RS485 | |
| Frequency/Rate Support | Max 115200 bps (RS422) | |
| Max 57600 bps (RS485) | ||
| BER | <10⁻⁹ | |
| Electrical | Power Adaptor | DC 5V |
| Power Consumption | <5 W | |
| LED Indicator | SDI | SDI Video |
| P/T | Power Supply | |
| Mechanical | Dimensions (TX) | 73 × 44 × 17 mm |
| Dimensions (RX) | 73 × 44 × 17 mm | |
| Dimensions (Package) | 185 × 132 × 100 mm | |
| Weight (TX) | 75 g | |
| Weight (RX) | 75 g | |
| Weight (Package) | 450 g | |
| Casing | Aluminum Case | |
| Mounting Options | Desktop | |
| Environmental | Working Temperature | −20°C to +70°C |
| Storage Temperature | −40°C to +80°C | |
| Working Humidity | 0–95% | |
| MTBF | ≥100,000 hours |
