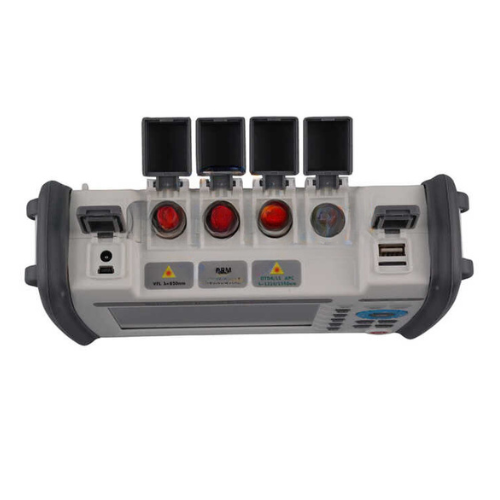

Mini OTDR Fiber Tester with Capacitive Touch Screen – Amuse Tech Solutions
High-performance OTDR with a large LCD. Offers long-range testing, precision, and reliability for fiber network maintenance and troubleshooting.
Description
Features
- Capacitive touch screen
- Integrated multi-functions
- Compact & lightweight
- Extended battery life
Technical Specifications
| Use | FTTx |
| Network | None |
| Product Name | ODTR Tester |
| Wavelength (Max: 5λ) | Single Mode: 1310/1490/1550/1610/1625/1650 nm Multi Mode: 850/1300 nm |
| Dynamic Range | 26 to 42 dB (Single Mode), 22 to 26 dB (Multi Mode) |
| Dead Zone | 3.3 ft / 1 m (Single Mode), 8.2 ft / 2.5 m (Multi Mode) |
| Pulse Width | 3 ns, 5 ns, 10 ns, 20 ns, 50 ns, 100 ns, 200 ns, 500 ns, 1 μs, 2 μs, 5 μs, 10 μs, 20 μs |
| Range | 328 ft, 656 ft, 1,640 ft, 1.2 mi, 3.1 mi, 6.2 mi, 12.4 mi, 24.8 mi, 49.7 mi, 74.6 mi, 155.3 mi |
| Minimum Sampling Resolution | 2 in / 5 cm |
| Linearity | ≤0.05 dB/dB |
| Loss Resolution (Unit: dB) | 0.001 dB |
| Distance Resolution (Unit: m) | 0.39 in / 0.01 m |
| Distance Accuracy | ±(3.3 ft + Range × 0.05% + Sampling Resolution) |
| Data Memory | 16 GB SD card (>100,000 data points) |
| Interface | USB (Type A ×1, Type B ×1), Micro SD Card |
| Battery | Single Battery Capacity: 7.4V/2500mAh ×2 (two batteries) |
| Temperature/Humidity | Operating: 14 °F to 122 °F (-10 °C to +50 °C), Storage: -4 °F to 158 °F (-20 °C to +70 °C), ≤95% (no condensation) |
| Size/Weight | 8.5 × 6.1 × 2.7 in (21.5 × 15.5 × 6.8 cm) / 2.4 lb (1.1 kg) |
