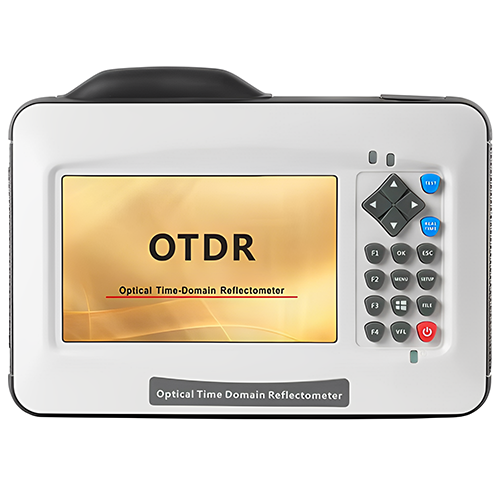

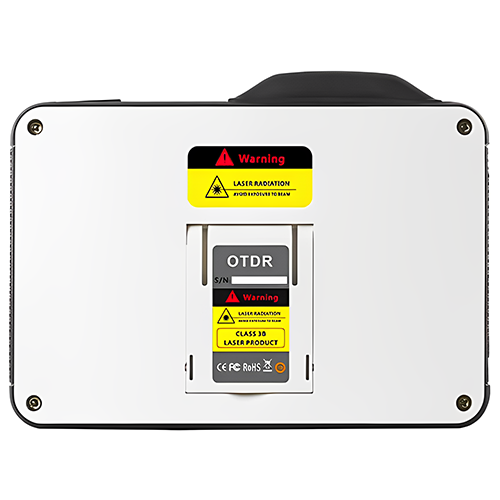

Mini OTDR Fiber Optical with Structural Interface Design – Amuse Tech Solutions
Handheld optical tester with long wavelength, wide screen touch screen, high memory capacity, VFL, OPM, USB ports, and long battery life.
Description
Features
- VFL and OPM Function
- Simple Interface
- Easy Report Making
- Structural Interface Design
Technical Specifications
| Accessories | Power adapter, charge cord, lithium battery, FC adapter, USB cable, quick guide, test report, CD, carrying bag, wrist strap |
| Battery | 7.4 V/3300 mAh lithium battery; Continuous working: 6 hours; Charge time: 3.5 hours |
| Wavelength | 1310/1550 nm |
| Dynamic Range | 26/24 dB, 30/28 dB, 35/33 dB |
| Pulse Width | 3 ns to 20 µs |
| Sampling Resolution | Min 0.16 ft (0.05 m) |
| Sampling Points | Max 128,000 |
| Linearity | ±0.03 dB/dB |
| Loss Threshold | 0.01 dB |
| Loss Resolution | 0.001 dB |
| Distance Resolution | 0.32 ft (0.01 m) |
| Distance Accuracy | ± 3.28 ft (1 m) + test distance × 3 × 10⁻⁵ + sampling resolution) |
| IOR Range | 1.2000 to 1.7000 |
| Memory Capacity | 80,000 groups curve |
| VFL (Visual Fault Locator) | 10 mW, CW/2 Hz |
| OPM Calibrated Wavelength | 850/1300/1310/1490/1550/1625/1650 nm |
| OPM Test Range | -60 dBm to +5 dBm |
| Interface | 3 USB ports (Type A×2, Micro USB×1) |
| Display | 5-in TFT-LCD touch screen |
| Optional Accessories | SC/LC Adapter, launch cable box |
| Temperature Range | Working: 14 ℉ to 122 ℉ (-10 °C to + 50 °C); Storage: -4 ℉ to 158 ℉ (-20 °C to +70 °C) |
| Dimensions | 7.67 in x 5.55 in x 1.73 in (19.5 cm × 14.1 cm × 4.4 cm) |
| Weight | 1.98 lb. (0.9 kg) (with battery) |
