Mini Optical Time Domain Reflector with Touch Screen Display – Amuse Tech Solutions
High-precision OTDR for fiber optic networks. Portable, reliable, and accurate for testing and troubleshooting. Ideal for field and lab use.
Description
Features
- Compact portable design
- High precision measurement
- Multi function integration
- Touch screen display
Technical Specifications
| Connector | Fc/upc(inchangable st sc ) |
| Functions | Otdr vfl opm LS |
| Use | Ftth ,fttx |
| Data Interface | Type-C USB |
| File Format | SOR standard file format |
| Laser Safety Rating | Level Class II |
| Output Wavelength | Consistent with OTDR output wavelength |
| Laser Type | FP – LD |
| Working Mode | CW/1Hz/2Hz |

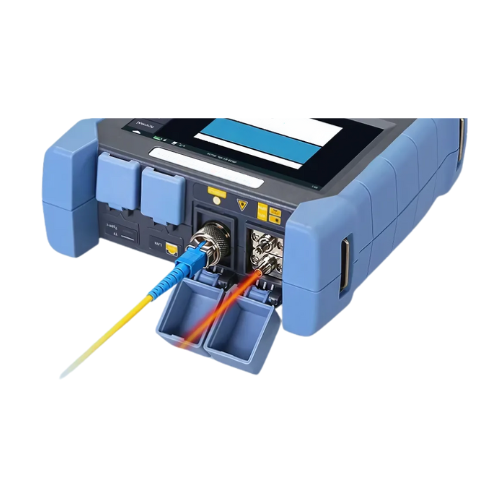

| Optical Connectors | Universal connector |
| Optical Connectors | FC/SC interchangeable, universal interface |

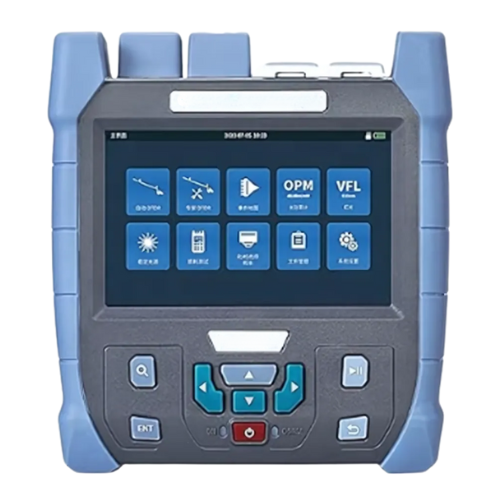

| Display | Full touch 5-inch, 800×480 color LCD |
| Power Supply Mode | AC/DC Adapter: Input: 100V to 240V, 50/60 Hz, 0.6 A; Output: 5V, 2 A Lithium Polymer Battery: 3.7 V, 5000 mAh |
| Working Hours | Standby: >12 hours Continuous Test: >8 hours |
| Data Storage | Internal Memory: 8 GB, ≥20,000 strips Interface: Type-C USB |
| Loss Measurement Mode | 4-point method / 5-point method |
| Data storage | Interior: 8G, ≥20000 strip |
| Network | 4g, 3G |
| Maximum Dynamic Range(DB) | 28/26/24/22/24 |
| Test Range Distance | 546.81 yd (500 m) / 0.62 mi (1 km) / 1.24 mi (2 km) / 2.49 mi (4 km) / 4.97 mi (8 km) / 9.94 mi (16 km) / 19.88 mi (32 km) / 39.76 mi (64 km) / 62.14 mi (100 km) |
| Event Dead Zone | 4.9 ft (1.5 m) |
| Attenuation Dead Zone | 19.7 ft (6 m) |
| Ranging Accuracy | ± (2.5 feet (0.75 m) + sampling interval + 0.005% × test distance) |
| Linearity | ±0.05 dB/dB |
| Maximum Sampling Points | ≥16,000 |
| Maximum Sampling Resolution | ≤0.1 ft (3 cm) |
| Wavelength Range | 800nm to 1700nm |
| Calibrate The Wavelength | 850 nm/980 nm/1300nm /1310 nm /1490 nm /1550 nm /1625 nm /1650 nm |
| Measuring Range | -70 dBm to +6dBm (optional) /-50 dBm to +26 dBm (standard) |
| Identification Frequency | CW/270Hz/330Hz/1kHz/2kHz |
| Resolution | 0.01dB |
| Uncertainty | ±5% |
| Loss Resolution | 0.01 dB |
| Loss Threshold | 0.20 dB |
| Distance Resolution | 0.03 ft (1 cm) |
| Refractive Index | 1.00000 to 2.00000 |
| Reflection Accuracy | ±3 dB |
| Relative Humidity | 0 % to 95% (non-condensing) |
| Operating Temperature | -22 °F to 122 °F (-30 °C to +50 °C) |
| Storage Temperature | -40 °F to 158 °F (-40 °C to +70 °C) |
| Dimensions | 6.7 in × 6.1 in × 2.3 in (17 cm × 15.4 cm × 5.8 cm) |
| Weight | 2.65 lbs (1.2kg ) |
