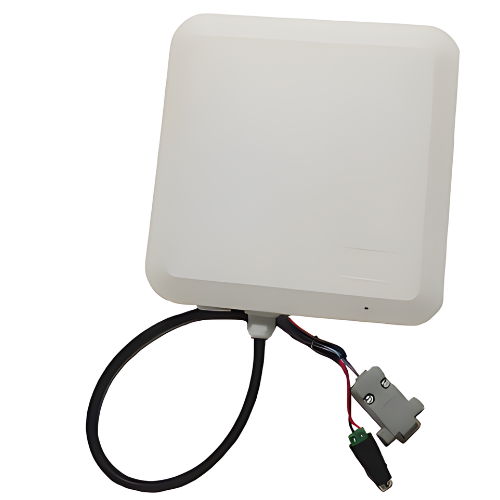

Mid-Range UHF RFID Reader, RS232 Interface, 0-30 dBm RF Power, Integrated - Amuse Tech Solutions

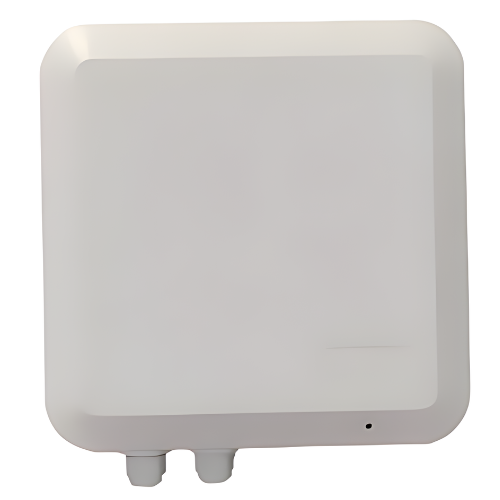

Mid-Range UHF RFID Reader, RS232 Interface, 0-30 dBm RF Power, Integrated - Amuse Tech Solutions - Image 2

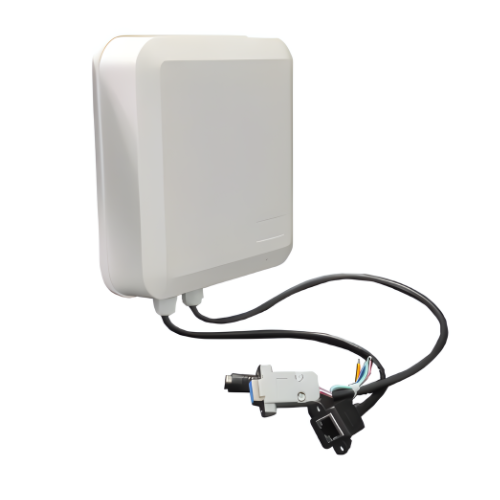

Mid-Range UHF RFID Reader, RS232 Interface, 0-30 dBm RF Power, Integrated - Amuse Tech Solutions - Image 3

Mid-Range UHF RFID Reader, RS232 Interface, 0-30 dBm RF Power, Integrated – Amuse Tech Solutions

UHF RFID Reader offers robust reading capabilities with adjustable RF power. Supports multiple communication interfaces and ideal for logistics and access control.

SKU: ATSUHF-860 Category:

Description

Overview

Amuse Tech Solutions UHF Middle Range Integrated RFID Reader RS232 is a high-performance UHF RFID integrated reader. It is designed upon fully self-intellectual property. Based on efficient DSP algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.



Features

  • Self-intellectual property
  • FHSS or Fix Frequency transmission
  • RF output power up to 30 dBm
  • 6dBi circular antenna
  • Support active mode
  • Low power dissipation
  • One Relay can control Beep
  • Support ModBus



Technical Specifications

Frequency 860 Mhz to 868 Mhz or 902 Mhz to 928 Mhz
Protocol ISO18000-6C (EPC Gen2)
Interface Standard (RS232, RS485, Wiegand, Trigger)
Read Distance 0 ft to 16.4 ft (0 m to 5 m) Effective distance depends on antenna, tag and environment
Write Distance 0 ft to 6.5 ft (0 m to 2 m) Effective distance depends on antenna, tag and environment.
Color Grey White
Keyword UHF Middle Range Integrated Reader
Shell Material ABS
Antenna 6 dBi circular polarization antenna
RF Power 0 dBm to 30 ­­­­dBm
Read Rate 200 cnt per second
Reading Prompt Buzzer
Working Voltage DC +9 V to 24V, 12 W
Work Mode Active mode, Answer mode, Trigger mod, Password mode
Communication RS232, RS485, WG26, WG34, Trigger,Relay, RJ45, WIFI, POE, USB,4G
Net RJ45 support TCP Client/Server, Modbus, DNS, DHCP. WIFI support TCP Client. 4G support TCP Client.HTTP Protocol, MQTT, LLRP
SDK Support X86 & X64, C++, C#, VB, Delphi, Linux, ARM, Python, NodeJS, QT, JAVA, Android.
Humidity 5 % RH to 95 % RH, Non-condensing
Operation Temperature -4 °F to 140 °F (-20 ℃ to 60 ℃)
Storage Temperature -40 °F to 185 °F (-40 ℃ to 85 ℃)
Size 7.20 in x 7.20 in x 1.81 in (183 mm X 183 mm X 46 mm)
Weight 4.4 lb (2.0 kg)
