Media Mini Converter With Type C Interface – Amuse Tech Solutions

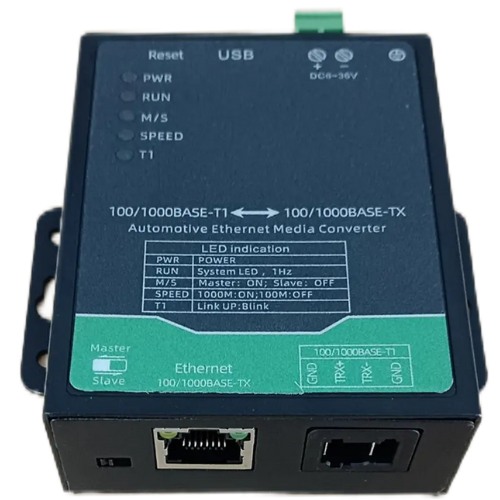

Amuse Tech Solutions media mini converter with type C interface is a Gigabit automotive Ethernet to RJ45 standard Ethernet converter.
Description
Overview
Amuse Tech Solutions media mini converter with type C interface is a Gigabit automotive Ethernet to RJ45 standard Ethernet converter. This device achieves bidirectional transparent conversion at the physical layer between standards Ethernet and Gigabit automotive Ethernet without storing or modifying any Ethernet packets
Features
- Automotive grade design
- DC9 36V wide voltage power supply design, supporting 12 V/24 V power systems
- Supports USB power supply via Type C interface
- One automotive Ethernet interface, TEMatenet 100 or 1000BASE-T1
- One standard Ethernet 100 or 1000BASE-TX interface with RJ45 connector
- Supports 100 or 1000Mbps communication; adaptive speed negotiation without the need for configuration
- The automotive Ethernet side can be set as either Master or Slave. The setting takes effect immediately without needing to restart the device
- Built in 100 or 1000BASE T1 filter compliant with OPEN Alliance standards
- Rich status indicators for easy troubleshooting
Technical Specifications
| DIP Switch | Present, can switch between master and slave mode |
| Ports | 1 x 100 or 1000BASE TXÂ RJ45 port,
1 x 100BASE T1Â TE Matenet connector |
| Installation Method | Wall mounting |
| Power | 9 V to 36 V, reverse polarity protection, supports powering by USB Type C |
| Consumption | 2 W |
| Storage Temperature | -40 °F to 185 °F (-40 ℃ to 85 ℃) |
| Humidity | 10 % RH to 80 % RH |
| Temperature | -40 °F to 185 °F (-40 ℃ to 85 ℃) |
| Size | 3.46 in × 2.67 in × 1.06 in (8.8 cm × 6.8 cm × 2.7 cm) |
