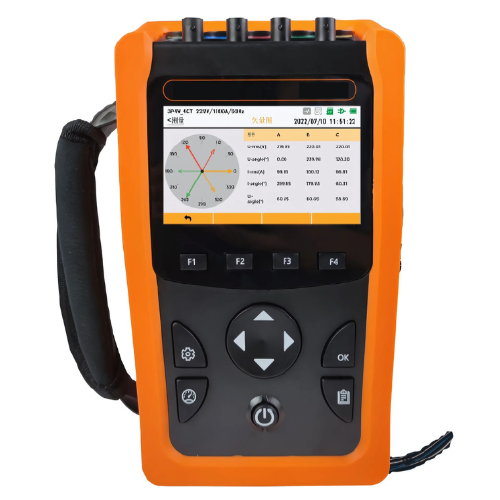

Handheld three-phase power quality analyzer for power measurement, analysis, and data export via Ethernet with rechargeable battery.
Description
Features
- Lightweight Sensor
- Easy Installation
- High-Definition Display
- Graphical Display
Technical Specifications
| Battery | Rechargeable lithium battery, specification 18650, 2 pcs, capacity about 4000mAh |
| Display | 3.97-in IPS display |
| Application Field | Power analysis, Power measurement, Power quality analysis |
| Current Sensor | Rogowski coil Voltage-output current clamp, 333mV CTs |
| Voltage Access | Direct access Connected through voltage transformer |
| Data Export | U disk export (U disk file is FAT32 system) |
| Communication Interface | RJ45- Ethernet |
| Communication Protocol | Modbus-TCP |
| Data Export | U disk export (U disk file is FAT32 system) |
| Application | Energy saving/monitoring/Renewable energy |
| Communication | Modbus TCP /RJ45 Ethernet |
| Current Sensor | Rogowski coil current clamp |
| Current Transformer | 333 mV CT / 333 mV Current probe |
| Current Range | 0 to 18000 A |
| Voltage Range | 0 to 600 VACS |
| Function | Graphs, Waveform, Power quality analysis |
| Frequency | 45 to 65 Hz |
| Wiring System | 3P4W_4CT 3P4W_3CT 3P3W_3CT 3P3W_2CT 1P2w |
| Storage Type | TF card |
| Capacity | 32 GB |
| Power Supply | 5 VDC, 2 A |
