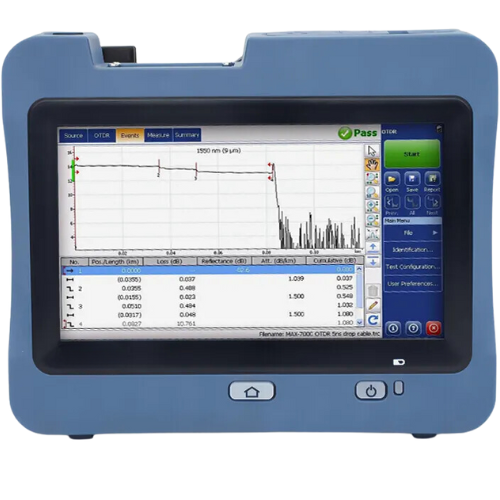

Max Tester Handheld Fiber Optic OTDR Visual Fault locator – Amuse Tech Solutions
Discover a high-performance optical. Advanced features like a wide dynamic range, long distance capability, and durable build quality.
Description
Technical Specifications
| Color | Blue |
| Wavelength | 1310 nm /1550 nm |
| Application | FTTX System |
| Dynamic Range | 28 dB /26 dB / 34 dB /32 dB |
| Connector Type | SC, FC, ST |
| Display | 5.7 in, color LCD |
| Material | Aluminum Alloy or Plastic Display |
| Outdoor-Enhanced Touchscreen | 7 in (17.8 cm), 800×480 TFT |
| Calibrated Wavelengths (nm) | 850, 1300, 1490, 1550, 1625, 1650 |
| Display Resolution (dB) | 0.01-max to -40 dBm, 0.1–40 dBm to -50 dBm |
| Tone Detection (Hz) | 270/330/1000/2000 |
| Output Power (dBm) | -11.5 |
| Power Range (dBm) | 27 to -50 |
| Sampling Points | Up to 256000 |
| Typical Real-Time Refresh (Hz) | 3 |
| Interface | Two USB 2.0 ports, RJ45 LAN 10/100 Mbit/s |
| Batteries | Rechargeable lithium-polymer battery, 12 hours (Telcordia TR-NWT-001138) |
| Power Supply | AC/DC adapter, 100-240 VAC, 50-60 Hz, 9-16 V DC, 15 Watts minimum |
| Wavelength (nm) | 1310 ± 30 / 1550 ± 30 / 1625 ± 10 |
| SM Live Port Built-in Filter | 1625 nm: High pass >1595 nm, Isolation >50 dB from 1270 nm to 1585 nm |
| Dynamic Range (dB) | 30/28/28 |
| Event Dead Zone (m) | 1 |
| Attenuation Dead Zone | 4 |
| Pulse Width (ns) | 5 to 20000 |
| Linearity (dB/dB) | ±0.05 |
| Loss Threshold (dB) | 0.01 |
| Loss Resolution (dB) | 0.001 |
| Distance Range (km) | 0.0621 miles to 99.42 miles (0.1km to 160km) |
| Temperature Operating | 14 °F to 122 °F (-10 °C to 50 °C) |
| Temperature Storage | -40 °F to 158 °F (-40 °C to 70 °C) |
| Size (H×W×D) | 6.1 in × 7.87 in × 2.68 in (15.5 cm × 20 cm × 6.8 cm) |
| Weight (with Battery) | (1.28 kg) 2.8 lb. |
